Have a considered view the laser cutting machine guide in Canada

What are the primary types of metal laser cutting machine options, and how do they differ?

Metal laser cutting is a versatile and precise method used for cutting metals. It offers various techniques that cater to different needs. that paragraph I will exhibit the primary types of metal laser cutting technical details including the laser core power source details how they differ from each other.

1.) CO2 Laser Cutting:

C02 laser cutting uses a carbon dioxide gas mixture to generate the laser beam. That method is not only reflective optic source power generation but also using chemical reaction. It is suitable for cutting, boring, engraving metal rials like mild steel, stainless steel, aluminum, harden steel

2.) Fiber Laser Cutting:

Fiber laser cutting utilize a solid-state laser that generated by glass fiber. It provides higher precision on the laser beam consistence , great technological development for cutting sheet metal.

3.) Nd: YAG Laser Cutting:

Nd: YAG or neodymium- doped Yttrium Aluminium Garnet laser cutting machine is know for its power to cut really thick sheet metal.

Choosing the right laser cutting technique maybe the first step of your metal cutting laser purchasing process yet there are various factors such as material type , thickness and desired finish. Understand the difference and application of those techniques can help in making an informed decision,

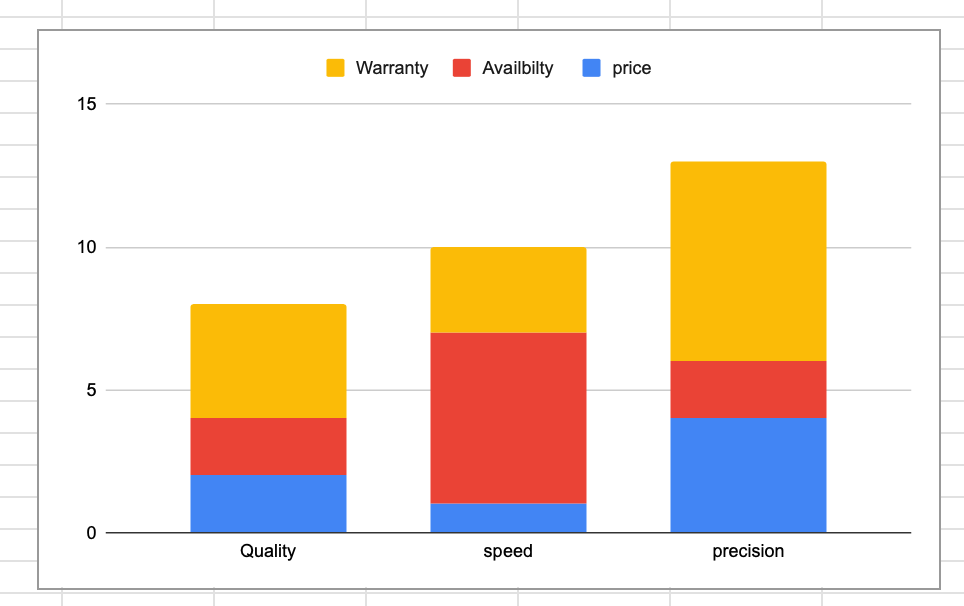

How does metal laser cutting in Canada compare to traditional metal cutting options?

Canadian sheet metal cutting industry is getting more intense on the specially aluminum sheet metal cutting and stainless steel sheet metal cutting sectors,

Metal Laser Cutting:

Metal laser cutting utilizes highly focused laser beam to cut metals with extreme precision and relatively lower sheet metal surface temperature. It offer advantages such as high accuracy, speed, and create more complex shapes using design engineering techniques .

Traditional Metal Cutting :

Traditional metal cutting methods like plasma cutting, water jet cutting and mechanical punches uses various of different equipment from h press to crank press. These methods may include extruding aluminum machines , cnc routing and mechanical punch presses. They are generally slower and less precise than laser cutting.

As will be seen on the below image metal laser cutting result with the fiber laser cutting machine is not only so precise it also allows to cut pieces that are pressed on the aluminum panel with painted surface.

Metal laser cutting laser while cutting the designated parts are not burning the painted surface.

While the traditional metal cutting methods still exist , especially for the toronto custom metal fabrication shops who is looking to work with various size and thicknesses metal fiber laser cutting machine is the best option.

One move forward advantage of the laser cutting over the traditional methods is its environmental friendliness. Laser cutting often consume less energy and create less smoke.

Which Materials Can be cut using Metal laser cutting services, and what are the limitations.

Metal laser cutting machine are customized for the their application . However, like any technology laser cutting has its limitations as well.

In this text we will present the materials that can be using metal laser cutting

Materials Suitable for Laser Cutting:

• Steel:
• Aluminum
• Copper
• Alloys

Laser cutting is suitable for those material list above and ability to handle different thicknesses.

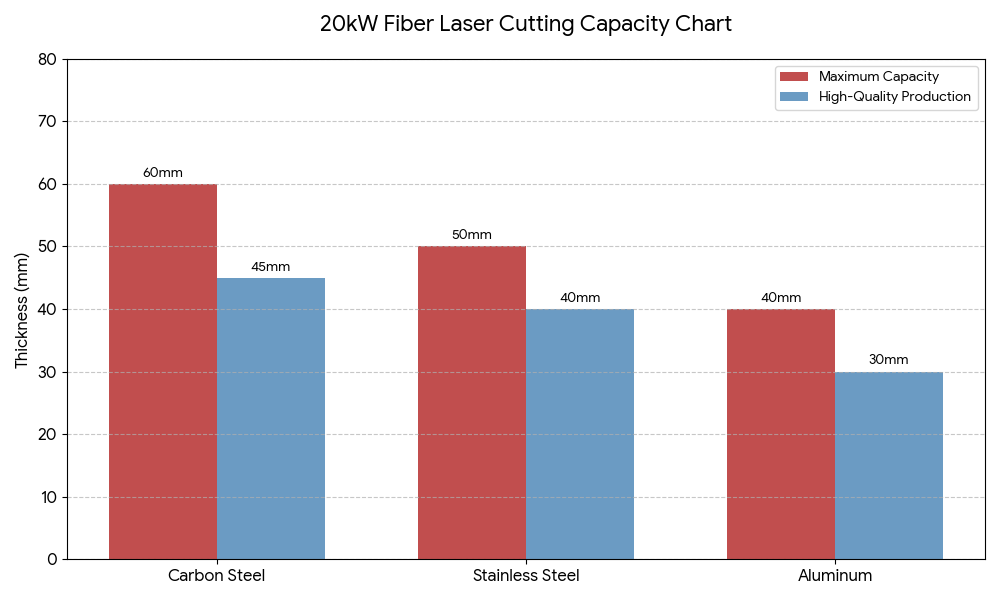

20kw Fiber laser cutting capacity chart

Best trending machine for 2026 Canada metal cutting laser power is 20kw laser cutting machine,

on this article we will review some of the points those why 20kw fiber laser cutting machine would be the trending on 2026 canada fiber laser metal cutting machines,

20kw fiber laser machine is a high power consumption is a limitation for a small shops who only has 200 amp power service on their facilty however high volume fabricators easy refer to take the advance of the 20kw laser cutting machine as it is capable of cutting 2 inches of carbon steel on a fast pace with oxygen supporting gas.

Limitation of 20kw Laser cutting Machine

1. High power consumption : While laser cutting can handle much thicker material with 20kw laser source , it also consuming much more power to generate this cutting force

2. higher safety requirements : Laser beam light is brighter than the low power laser source and also the distance from tip of the nozzle to effective area distance are longer, therefore enclosure and safety standard need to be double review

3. Larges cutting size: often larger power machines comes with larger cutting table and most often the bevel cutting head.

4. Cost: when we look at the cost respective higher compare to lower power models of 3kw, 6kw and 12kw . if 3kw laser cutting table cost about x amount of dollars, 20 kw laser will be 4 X x or even more depending on the table size.

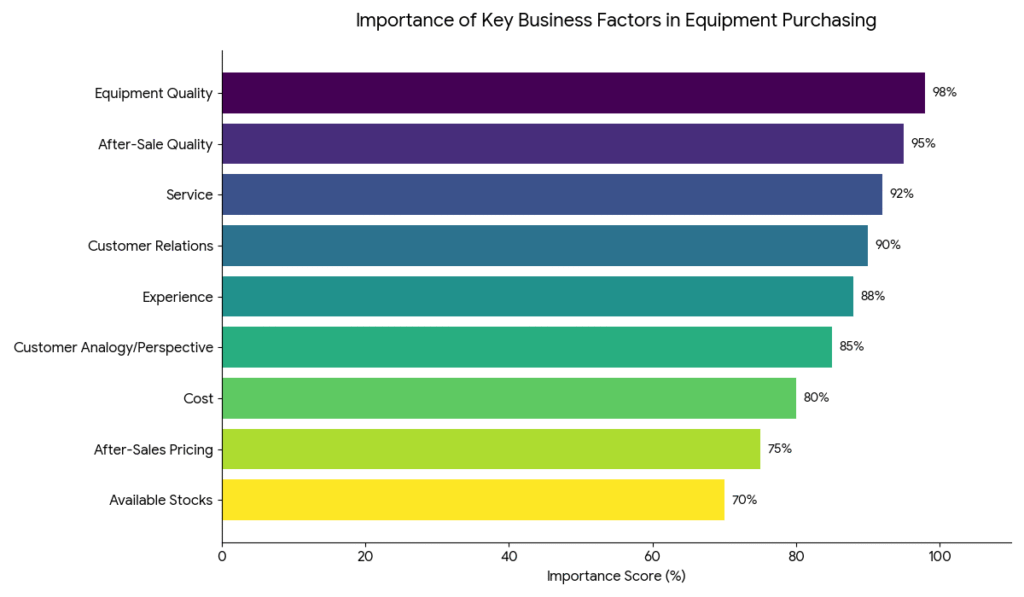

Criteria’s of choosing the right laser cutting equipment

Deciding on the right metal laser cutting equipment supplier and equipment itself is a crucial decision that impacts the quality , cost , and success of a production. This article will guide you through the essential factors to consider when selecting a metal laser cutting machine seller in  Toronto.

1.Technology and Equipment : Evaluate the equipment with by the provider, State of the art machine ensure higher precision and efficiency.

2 Experience and Expertise : Canadian equipment provider with technical support technicians and laser consumables with it is a one of the critical point to make your decision.

3. Material Handling: Machine should be able to work in hard conditions and for flexibly

4.) Warranty Terms: Electrical component warranty with five year is a great deal for any metal laser cutting equipment

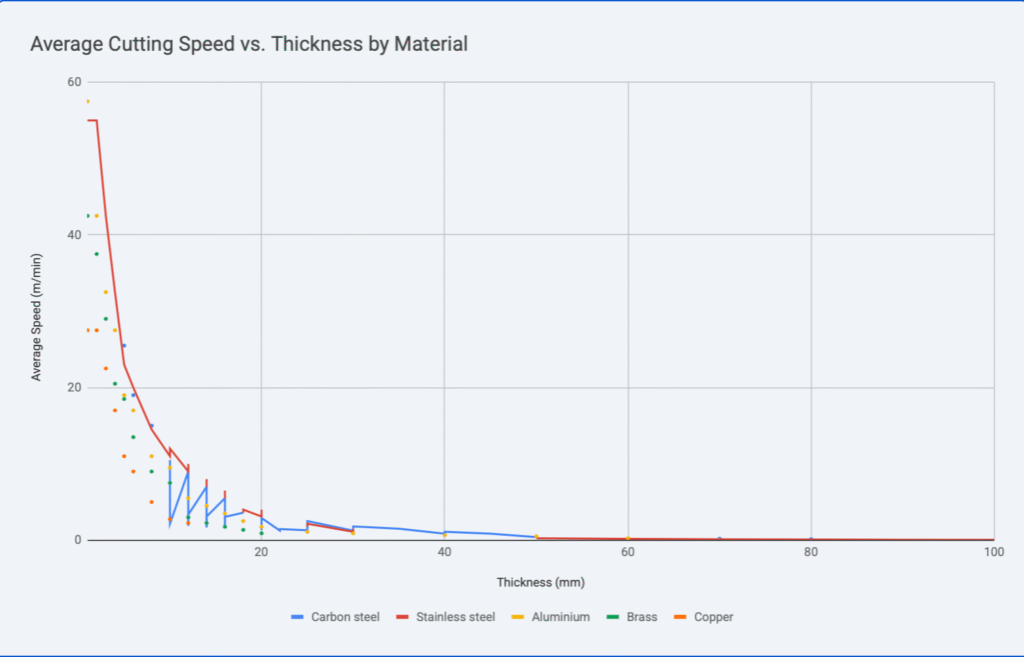

Average Cutting Speed and Material Thickness Comparison

Sheet Metal cutting company also have to time study material cutting speed of the laser cutting table compare the material thickness.

What are the factors effecting the cutting Speed for Material thickness

1.) Supplementary Gas Supply.

there are 3 type of gas is being use for metal cutting application on the Laser.

1.) Oxygen: Oxygen use is being effective when carbon steel material of thick metal plate needed to be cut, Oxygen and laser beam is grating a chemical reaction on the metal surface to penetrate and consume metal plate to create the cut like effect. Oxygen usage very common yet smallest method of all option for laser metal cutting.

2.) High Pressure air: Air usage secondly common method for metal cutting, Air can be use to cad Aluminum, galvanized and stainless steel cutting with great performance  and speed.

Clean cuts are usually achieved on higher speed application on the same laser source with compress air cutting than what can be reach with the oxygen usage.

Min air pressure should be 16 bars / 235 PSI.

3.) Nitrogen : Pure nitrogen usage is fastest way of cutting metal plate on the laser source cutting applications. Speed is five times faster than plasma table, and double the speed of cutting with using oxygen as supplementary gas.

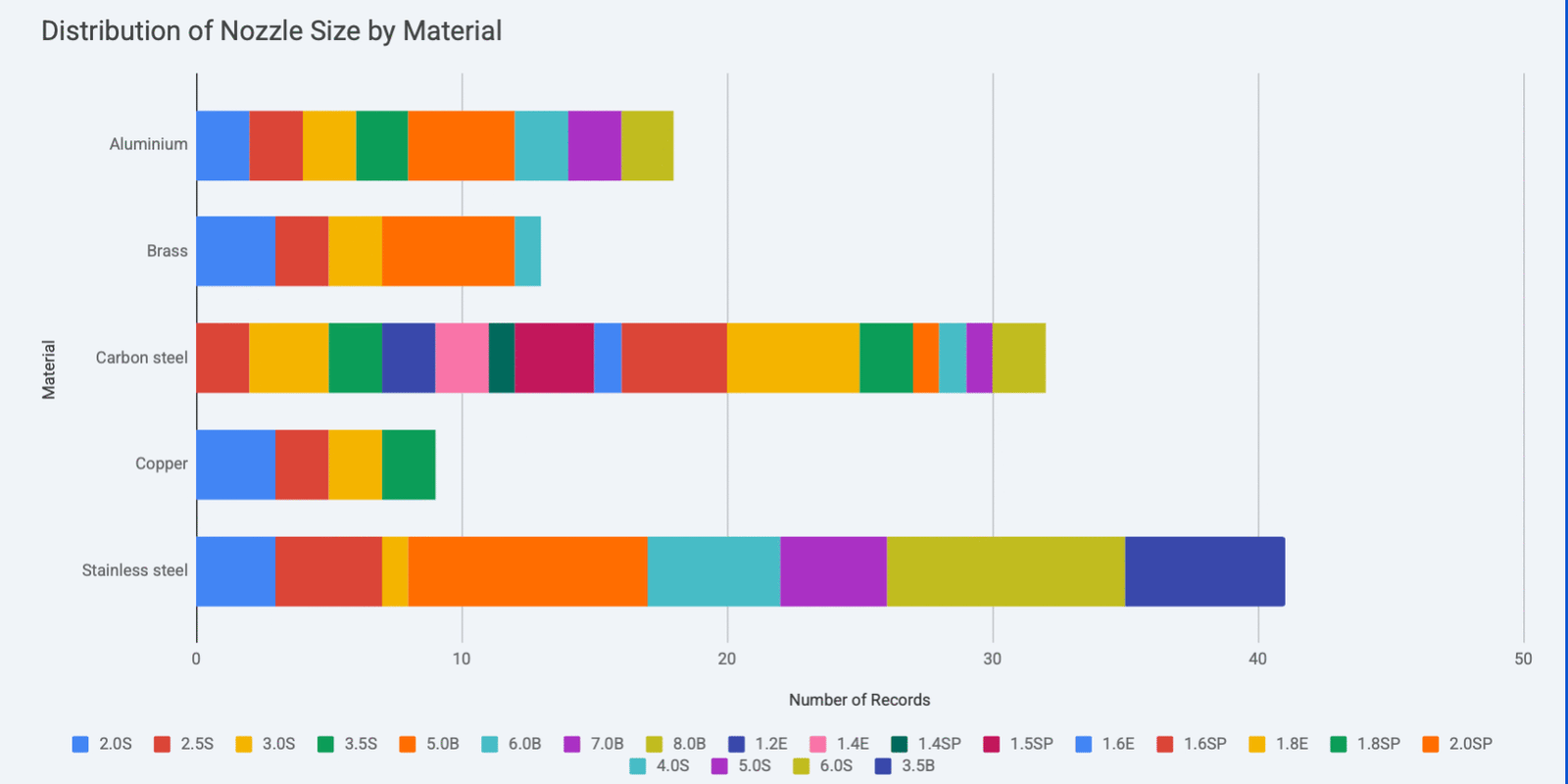

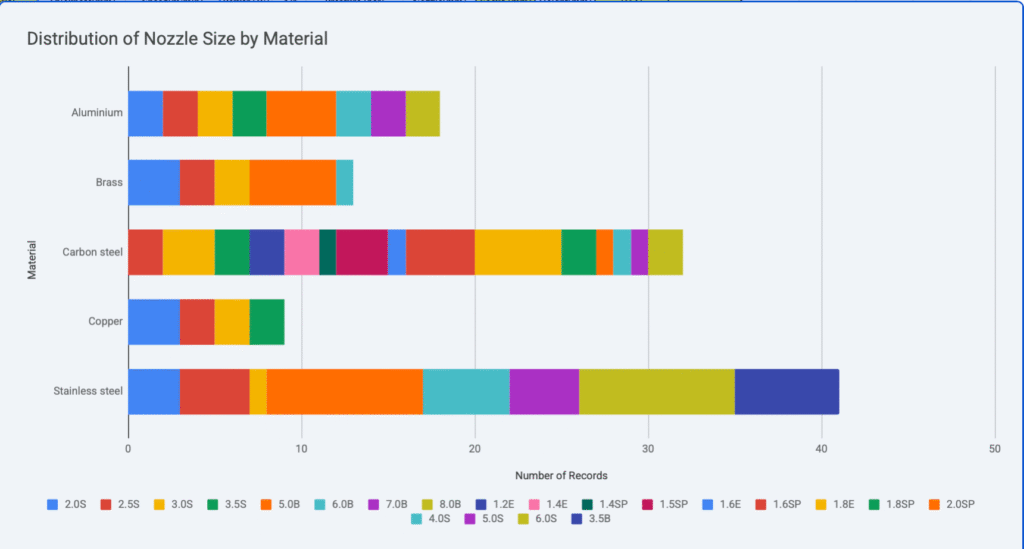

Distribution of the nozzle size by material thickness on 20 kw fiber laser

Cutting parameters of the laser source can be listed as follow

1.) Power

2.) Frequency

3.) Nozzle Height

4.) Speed

5.) Focus

Additional to those points also we need to apply some piecing setting in order to create a opening on the sheet metal to start cutting.

However there is one additional part of the cutting process that should not be undertook,

Which is the cutting nozzle applies to your laser cutting head.

Please remember that when any of the cutting parameters are saved for any particular metal sheet cutting setting, always remember to save he type of nozzle had been tested to use on the same cutting parameters. If right nozzle is not being used, the results is not only be ended up with good cutting results, it will be ended up even damaging the lower protection lenses on your laser cutting head.

Type of the nozzle can be use on the Laser cutting head for metal cutting applications.

1.) A Type cutting Nozzle

2.) B Type Cutting Nozzle

3.) C-Type Cutting Nozzle

4.) D-Type Cutting Nozzle

5.) E-Type Cutting Nozzle

6.)3D-type Cutting Nozzle

7.) M-Type Cutting Nozzle

8.) ECU-Type Cutting Nozzle
