Description
Heavy-Duty Precision for High-Volume Manufacturing

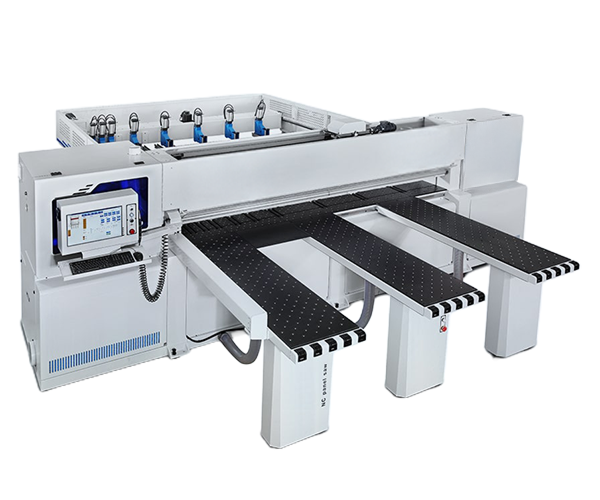

Transform your production capabilities with the Automatic CNC Panel Saw Rome 3200P. Built for the most demanding industrial environments, this machine redefines stability and power. Weighing in at a massive 6000 kg, the Rome 3200P offers vibration-free operation and exceptional cutting accuracy, making it the premier Automatic CNC Panel Saw for large-scale furniture factories and wood processing plants.
Why the Rome 3200P Stands Out
1. Unmatched Stability and Heavy Construction The defining feature of the Rome 3200P is its robust frame. With a machine weight of approximately 6000 kg, it is significantly heavier than standard models in its class. This heavy-gauge steel construction eliminates vibration during high-speed cutting, ensuring a mirror-smooth finish on every panel.
2. Industrial Cutting Capacity (90mm Height) Designed for mass production, this Automatic CNC Panel Saw is equipped with a powerful 15kW (20 HP) main motor. It can effortlessly slice through stacks of panels up to 90mm in height. Whether you are cutting high-density MDF, plywood, or abrasive melamine, the Rome 3200P delivers consistent torque and precision.
3. High-Efficiency Servo Drive System Speed meets accuracy with the advanced servo-driven saw carriage. Capable of return speeds up to 100 m/min, the carriage utilizes a precision rack-and-pinion system to reduce cycle times. The magnetic grid ruler ensures positioning accuracy to within 0.1mm, guaranteeing that your components are cut to exact specifications every time.
4. Smart Optimization & Control The machine features a PC-based control system with a 19-inch screen and intuitive software. It seamlessly integrates with furniture design software to generate optimized cutting plans, drastically reducing material waste. The system also monitors machine status in real-time, a standard requirement for a modern Automatic CNC Panel Saw.
Saw seat transmission structure
The saw wheel has an integrated side support device
Clamp seat positioning
The groove saw is adjusted by computer for the knife
Technical Specifications
| Feature | Specification |
| Model Name | Rome 3200P |
| Max. Cutting Length | 3200 mm |
| Max. Cutting Width | 3100 mm |
| Max. Cutting Thickness | 90 mm (Standard) |
| Main Saw Motor Power | 15 kW (20 HP) |
| Scoring Saw Motor Power | 1.5 kW (2 HP) |
| Saw Carriage Return Speed | Up to 100 m/min |
| Cutting Speed | Up to 85 m/min |
| Main Saw Blade Diameter | 400 mm |
| Scoring Saw Blade Diameter | 200 mm |
| Grippers | 8 pcs (Double-finger structure) |
| Machine Weight | Approx. 6000 kg |
| Total Power Requirement | Approx. 27.3 kW |
The Ultimate Solution for Panel Sizing
The Automatic CNC Panel Saw Rome 3200P is engineered for those who refuse to compromise on quality. Its “double-finger” gripper structure ensures a firm hold on panels even at high speeds, while the air-floating table system protects delicate surfaces from scratching.
If you are looking for a machine that combines the brute strength of heavy industry with the intelligence of modern CNC automation, the Automatic CNC Panel Saw Rome 3200P is your answer.
