Description

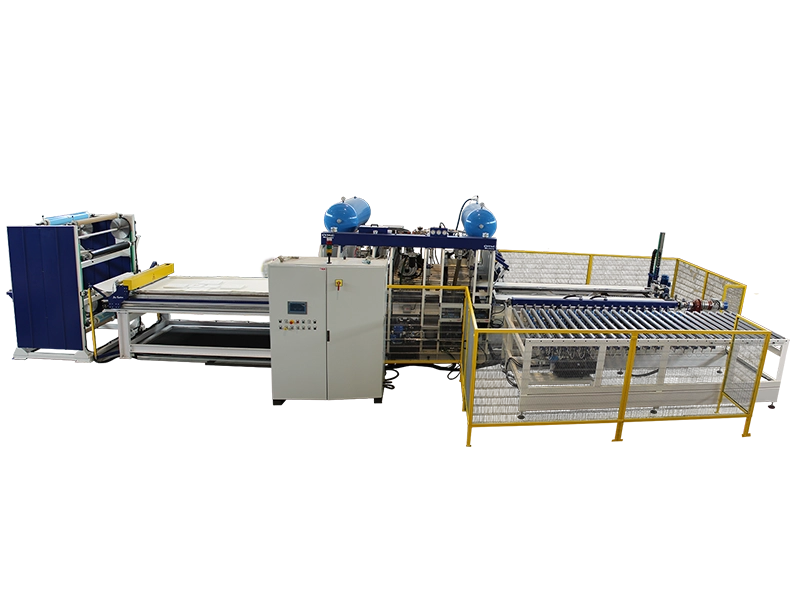

The Airtec CA Membrane Press is a high-production vacuum membrane press designed for the application of 3D thermoforming films and one-sided veneer to shaped panels and furniture components. Combining heat, air pressure, and vacuum technology with automatic tray loading, the Airtec CA is engineered for manufacturers requiring efficient, repeatable production of high-quality thermoformed and veneered products.
Designed for complex three-dimensional surfaces, the Airtec CA Membrane Press can apply PVC, PPE, ABS, and other thermoforming films with or without a membrane, depending on the application. For veneer processing, the membrane is used to ensure consistent adhesion across shaped surfaces. A quick-release membrane system simplifies setup and allows operators to efficiently transition between different production environments.
Unlike manually loaded Airtec models, the Airtec CA Membrane Press features automatic loading from the narrow side and is available with one, two, or three trays. This configuration makes the machine particularly well suited for higher-volume manufacturing environments where increased automation and continuous production are important.
The Airtec CA Membrane Press combines high pneumatic thrust with a heavy-duty oxy-cut structure to process particularly complex surfaces. Solid drilled steel worktops, diathermy oil heating, vacuum technology, and digital touchscreen controls provide the accuracy, stability, and process control required for demanding furniture and panel manufacturing applications.
Key Features:
- Automatic tray loading from the narrow side
- Designed for high-volume production
- Application of 3D thermoforming films and one-sided veneer
- Processes PVC, PPE, ABS, and other thermoforming films
- Available with one, two, or three trays
- High pneumatic thrust for complex shaped surfaces
- Heavy-duty oxy-cut machine structure
- Solid drilled steel worktops
- Digital touchscreen control panel
- Quick-release membrane system
- Diathermal oil heating
- Maximum working temperature up to 250°C
- Maximum specific working pressure up to 30 kg/cm²
Available Models:
Airtec CA
- 1 tray
- Automatic loading from the narrow side
Airtec CA-2V
- 2 trays
- Automatic loading from the narrow side
Airtec CA-3V
- 3 trays
- Automatic loading from the narrow side
Working Sizes:
Airtec CA 25/14
- Working Area: 2340 x 1280mm
- Thrust: 8 + 1 kg/cm²
Airtec CA 30/14
- Working Area: 2840 x 1280mm
- Thrust: 8 + 1 kg/cm²
Applications:
The Airtec CA Membrane Press is ideal for producing:
- Shaped furniture panels
- Kitchen cabinet doors
- Bathroom cabinet doors
- Furniture doors and fronts
- 3D thermoformed panels
- Veneered shaped panels
- Decorative furniture components
- Custom furniture components
- Interior architectural panels
- Complex shaped surfaces
Advanced Components:
- Automatic tray loading system
- Solid drilled steel worktops
- High pneumatic thrust system
- Digital touchscreen control panel
- Diathermal oil heating system
- Proportional pressure control valve
- Industrial vacuum system
- Quick-release membrane mounting system
- Heavy-duty oxy-cut structure
- Precision-machined work surfaces
Standard Equipment:
- 1 rubber membrane
- Diathermal oil heating system
- 1 proportional control valve
- 500-litre compressed air tank
- 1 vacuum pump
- 500-litre vacuum tank
Optional Equipment
- PVC unwinding cart with manual cutting
- PVC unwinding trolley with pneumatic cutting
- Load group partializing bar
- JIG System 25/14, magnetic or electronic
- JIG System 30/14, magnetic or electronic
- 1400mm antistatic brush
- Shiny PVC system with intermediate flange, software, and silicone membrane
- Modular chamber, 90mm or 180mm
- Surface cleaning system for glossy PVC
- High Gloss PVC system
- PVC granulator
- PVC tensioning device
- Tray scanning system with PVC distension and cutting
- Rotating multi-station PVC warehouse for up to 10 coils
- Suction cup tipper unloader with motorized roller conveyor
The Airtec CA Membrane Press is an ideal solution for manufacturers seeking to increase production capacity while maintaining precise, consistent thermoforming and veneer application. Combining automatic tray handling, high pneumatic thrust, advanced vacuum technology, and robust industrial construction, the Airtec CA Membrane Press provides the automation and reliability required for high-volume furniture, cabinet door, and shaped panel production.
