Description

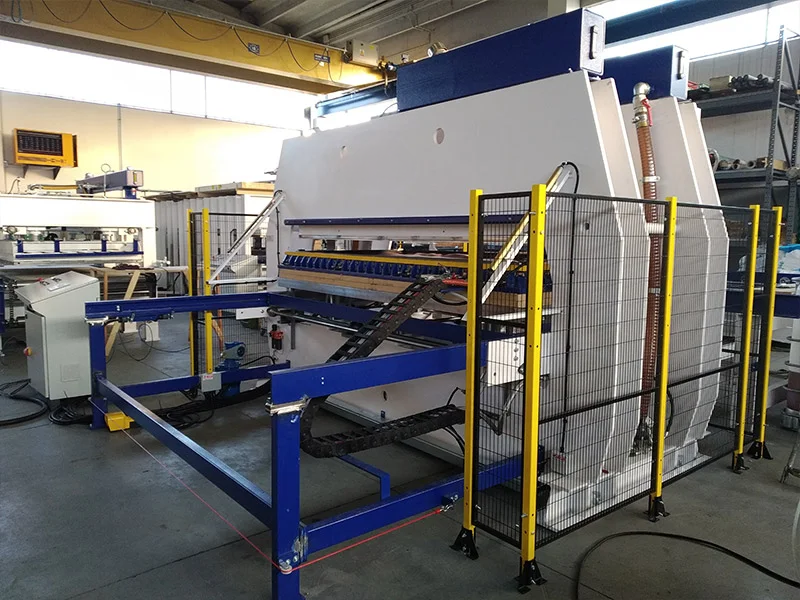

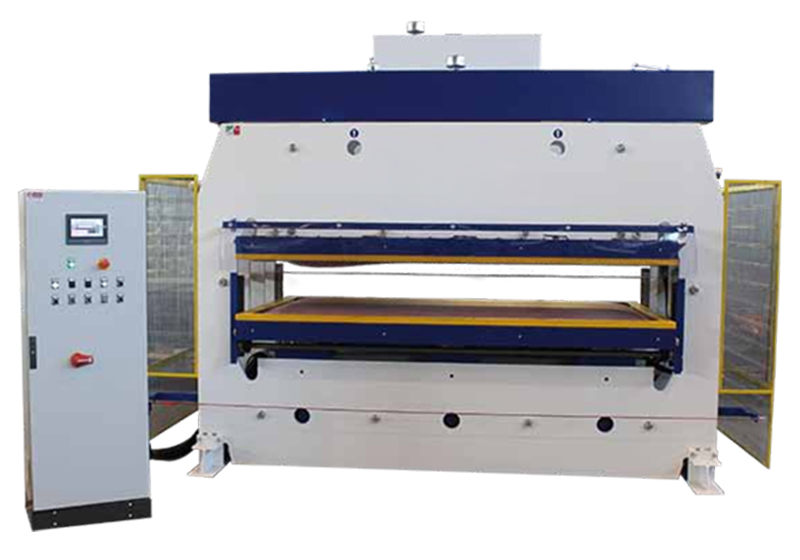

The Fluid Double Membrane Press is designed for the application of 3D thermoforming films and veneer on both sides of shaped surfaces. As part of the FLUID series, the press takes advantage of the incompressibility of a liquid to achieve high specific pressures for processing particularly complex and delicate thermoformable materials.
The Fluid Double Membrane Press can apply PVC, PPE, AVS, and other 3D thermoforming films as well as veneer to shaped surfaces. FLUID series presses can also be configured for the application of aluminum to shaped panels with the ALM version.
Designed specifically for two-sided processing, the Fluid Double Membrane Press features high hydraulic thrust and a heavy-duty oxy-cut structure to allow coatings to be applied to particularly complex surfaces. The press is equipped with two rubber membranes and diathermal oil heating as standard.
The Fluid Double Membrane Press is available in manual and automatic loading configurations, including single-action and two-action models. Multiple working dimensions and pressure configurations are available, with specific working pressures ranging from 8 kg/cm² to 18 kg/cm², depending on the selected model and size.
Key Features:
- Designed for two-sided thermoforming and veneer application
- Uses liquid incompressibility to achieve high specific pressures
- Processes PVC, PPE, ABS, and other 3D thermoforming films
- Suitable for veneer application on shaped surfaces
- Aluminum application available with FLUID ALM configuration
- High hydraulic thrust
- Heavy-duty oxy-cut structure
- Available with manual or automatic loading
- Available in single-station and two-station configurations
- Two rubber membranes
- Diathermal oil heating
Available Models:
Fluid Double
- Lower movable top
- Manual loading
Fluid Double CA
- Lower movable floor
- One station
- Automatic loading
Fluid Double CA 2V
- Lower movable floor
- Two stations
- Automatic loading from the opposite side
Working Sizes:
Fluid Double 18/8
- Working Area: 1650 x 650mm
- Thrust: 8kg/cm² or 16 kg/cm²
Fluid Double 24/8
- Working Area: 2250 x 650mm
- Thrust: 8kg/cm² or 16 kg/cm²
Fluid Double 25/10
- Working Area: 2350 x 850mm
- Thrust: 8kg/cm² or 16 kg/cm²
Applications:
The Fluid Double Membrane Press is designed for the production of:
- Shaped panels
- Shaped components
- Doors
- Bathroom furniture doors
- Kitchen furniture doors
- Aluminum-coated doors
- Double-sided thermoformed components
- Double-sided veneered components
Standard Equipment:
- 2 rubber membranes
- Diathermal oil heating
Optional Equipment:
- Vacuum pump with vacuum system for 3D thermoforming and aluminum applications
- Worktop for operation with a single membrane
- Independent worktop temperature control
The Fluid Double Membrane Press provides high hydraulic pressure for the application of thermoforming films and veneer on both sides of complex shaped surfaces. With manual and automatic loading configurations, multiple working sizes, and pressure options up to 18 kg/cm², this press can be configured according to different production and processing requirements.
