Description

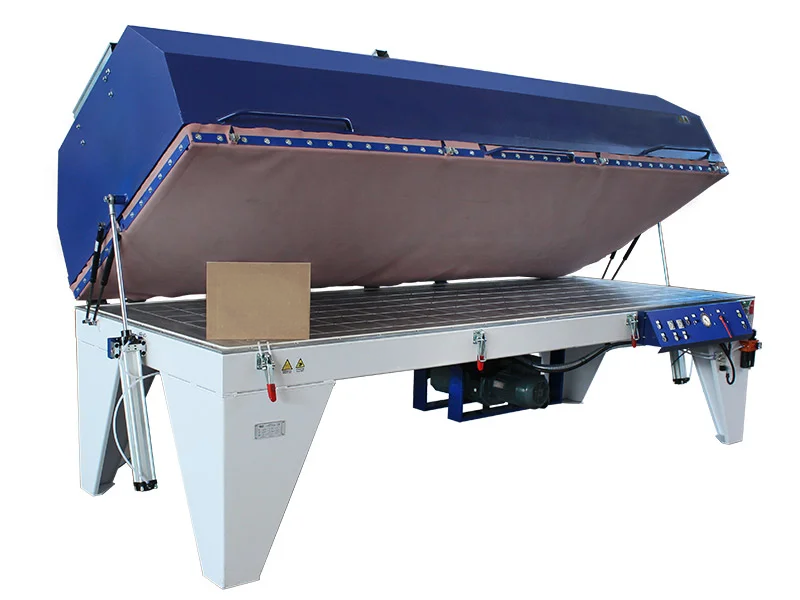

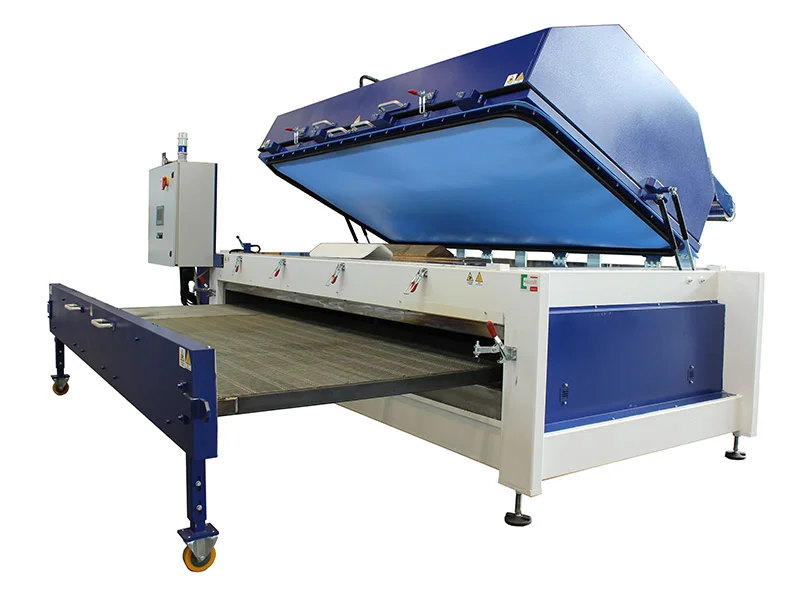

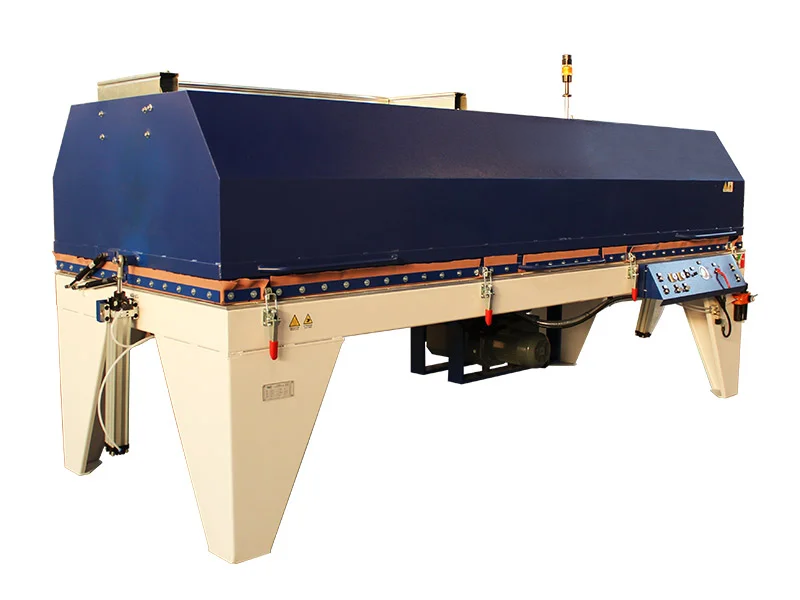

The Vacuum Easy is a hot vacuum forming machine with a hood, designed for ennobling with wood and/or laminates and for gluing curved sheets. As part of the Vacuum series, the machine uses vacuum and heat for coating and gluing curved panels.
The Vacuum Easy can be used to create curved multilayer panels and apply veneer to curved surfaces. The machine features an aluminum work surface with grooves for vacuum propagation, a 60m³ vacuum pump, and one membrane.
Heating on the Vacuum Easy is provided by an upper hood equipped with ceramic resistances and a fan for uniform temperature distribution. The system has a maximum temperature of 110°C.
Functions:
- Creation of curved panels with multilayer sheets
- Application of veneer on curved surfaces
- Ennobling with wood and/or laminates
- Gluing of curved sheets
Final Products:
- Curved shaped panels for the nautical sector
- Curved shaped panels for interior design
- Shaped panels for tables
- Shaped panels for desks
Useful Dimensions:
- 25/13: 2360 x 1160mm, maximum working height 500mm
- 30/13: 2860 x 1160mm, maximum working height 500mm
- 35/13: 3360 x 1160mm, maximum working height 500mm
The maximum working height refers to the central part of the machine.
Standard Equipment:
- Aluminum work surface with grooves for vacuum propagation
- Vacuum pump: 60m³
- 1 membrane
- Upper heating hood
- Ceramic resistances
- Fan for uniform temperature distribution
- Maximum temperature: 110°C
- Gasket fixed to the membrane frame to avoid tearing when changing the mold

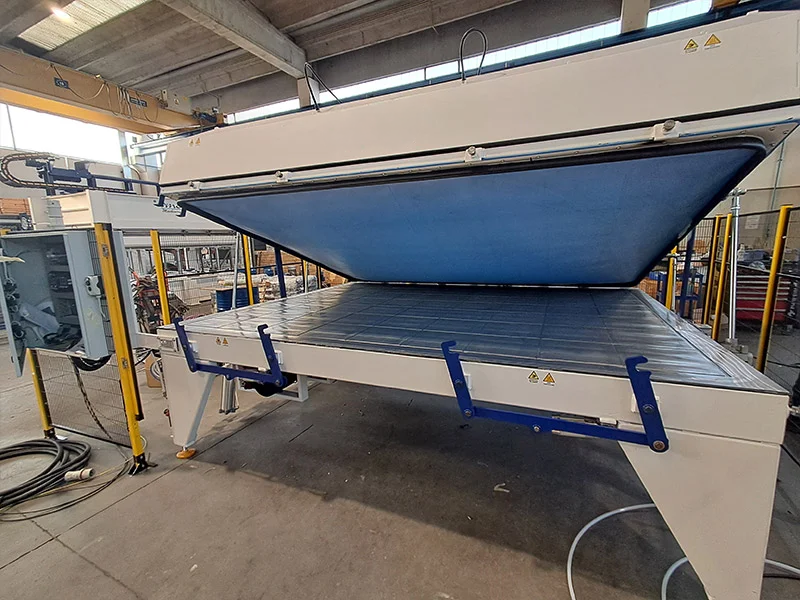

Optional Equipment:
The Vacuum Easy can be equipped with:
- Pneumatic membrane frame lifting system
- Pneumatic hood lifting system
- Logic Control digital panel
- Pneumatic membrane frame locking system
- Drilling for fixing molds
