Description
The PFL Press is a low-tonnage press designed for bonding chipboard and Formica, as well as other applications that do not require high thrust. The PFL series is available in multiple configurations with different movable work surfaces depending on the required pressing operation.
The PFL Press is available in standard working sizes of 2500 x 1300mm and 3000 x 1300mm. Standard sizes can also be customized according to customer requirements.
All models in the PFL Press series feature chipboard work surfaces covered with galvanized sheet metal. The work surfaces are opened manually using a lever, while pressure can be read from a pressure gauge on the control panel and adjusted using a hand wheel.
Applications:
- Bonding chipboard
- Bonding Formica
- Applications that do not require high thrust
Standard Sizes:
- 2500 x 1300mm
- 3000 x 1300mm
- Custom sizes available according to customer requirements
Available Models:

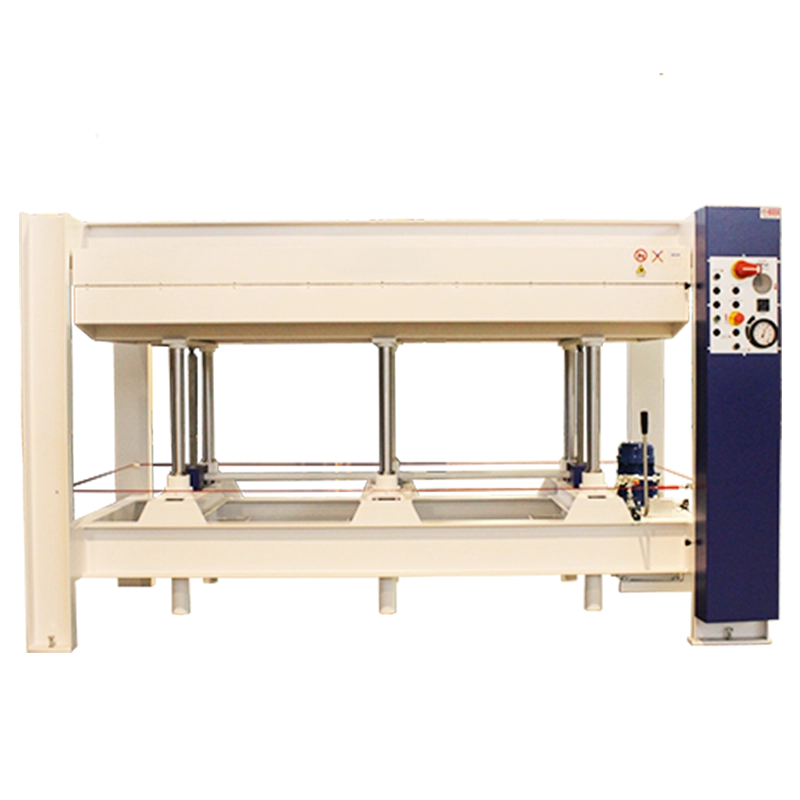

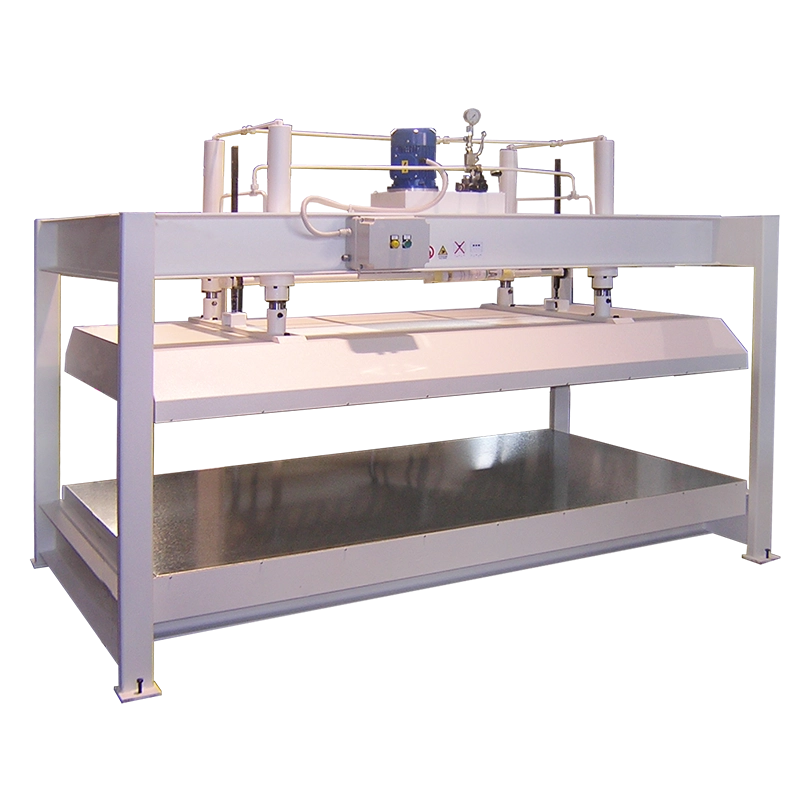

PFL.A
- Upper movable work surface
- Movement from top to bottom
PFL.B
- Lower movable work surface
- Movement from bottom to top
PFL.C
- Upper work surface divided into three equal and independent sections
Work Surfaces:
- Chipboard work surfaces covered with galvanized sheet metal
- Manual opening by means of a lever
Standard Equipment:
- Structure composed of FE430 beams, assembled and welded
- Manual work surface opening using a lever
- Pressure gauge located on the control panel
- Handwheel for pressure adjustment
- Pressure sealing tap
Optional Equipment:
- Extra stroke of 650mm
- Extra stroke of 1000mm
- Pressure recovery
- Electric opening
- Perimeter control
The PFL Press complies with EC 2006/42/EC Machinery Directive.
