Description

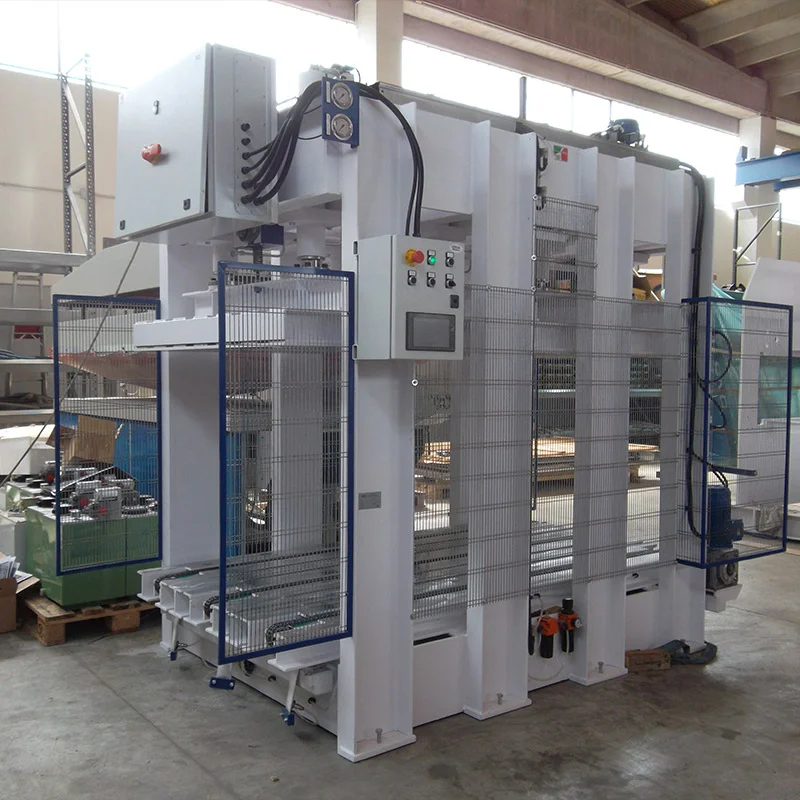

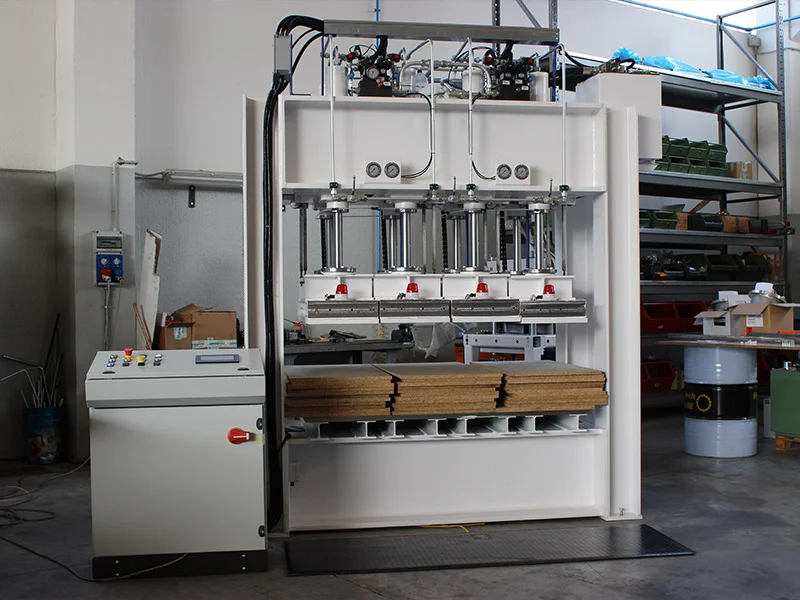

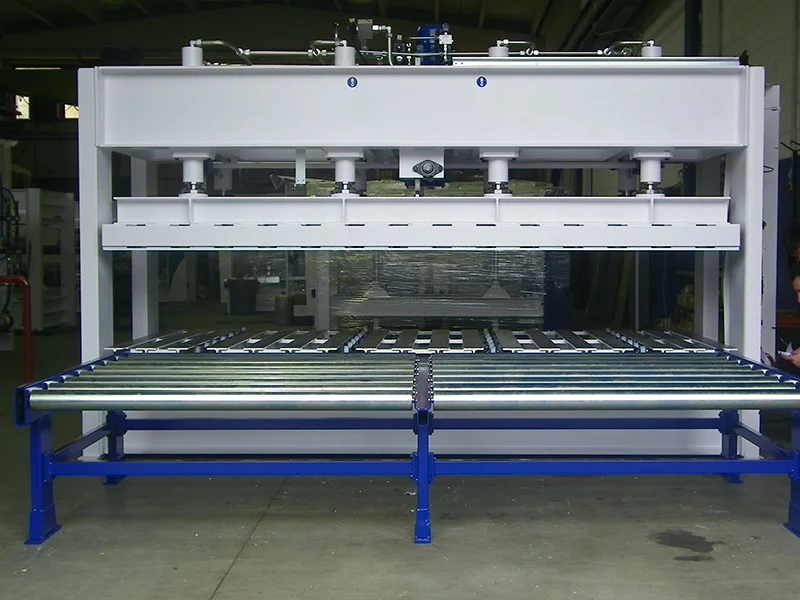

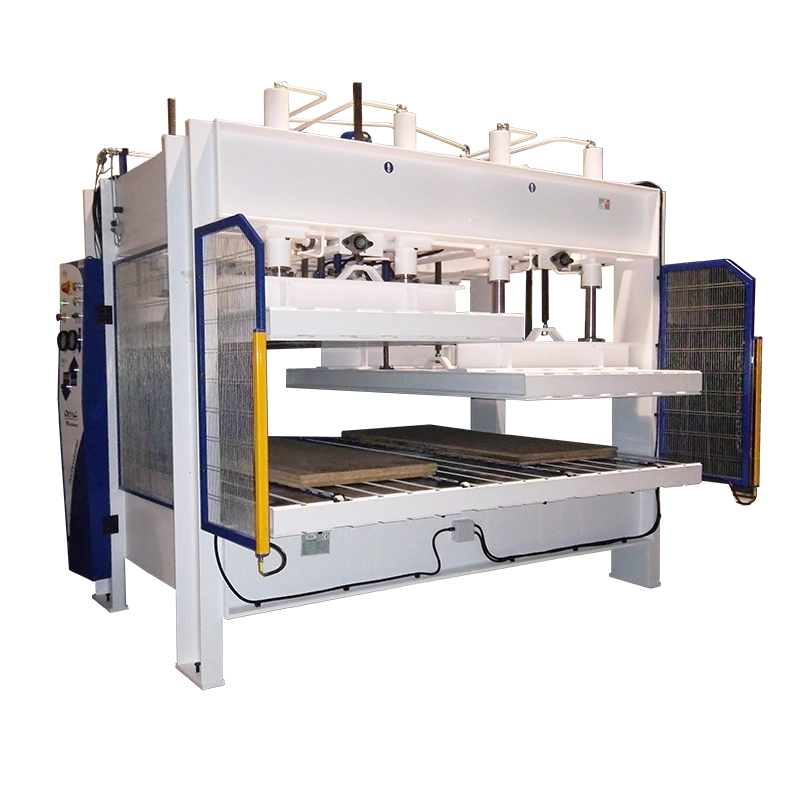

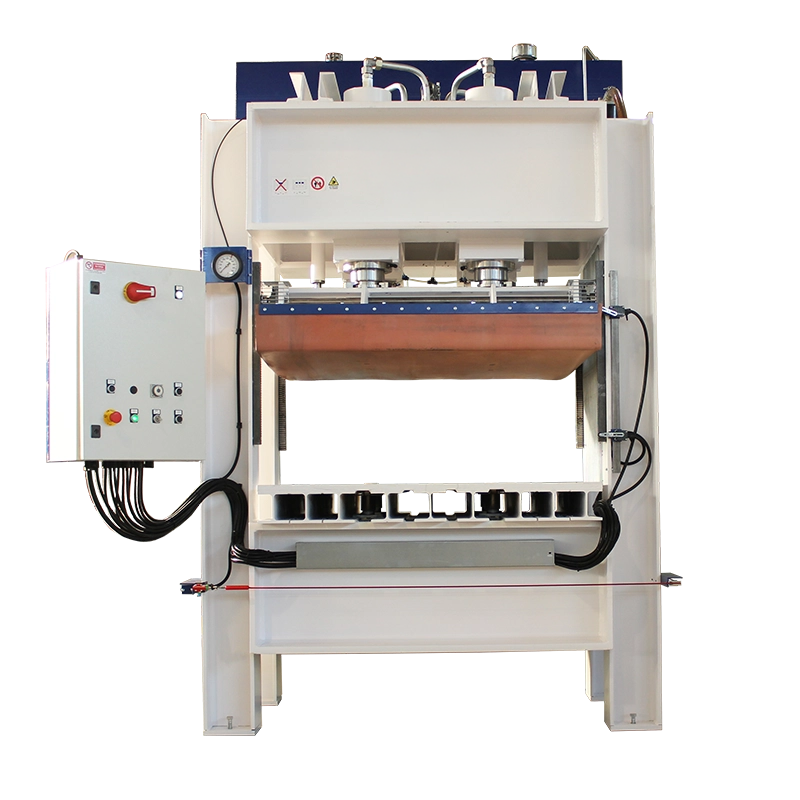

The PFP and PFPs Presses are specifically designed for the cold pressing of piles of panels, sandwich panels, and doors. Both models are available in the same standard sizes and share the same standard equipment, with the primary difference being the direction of material loading.

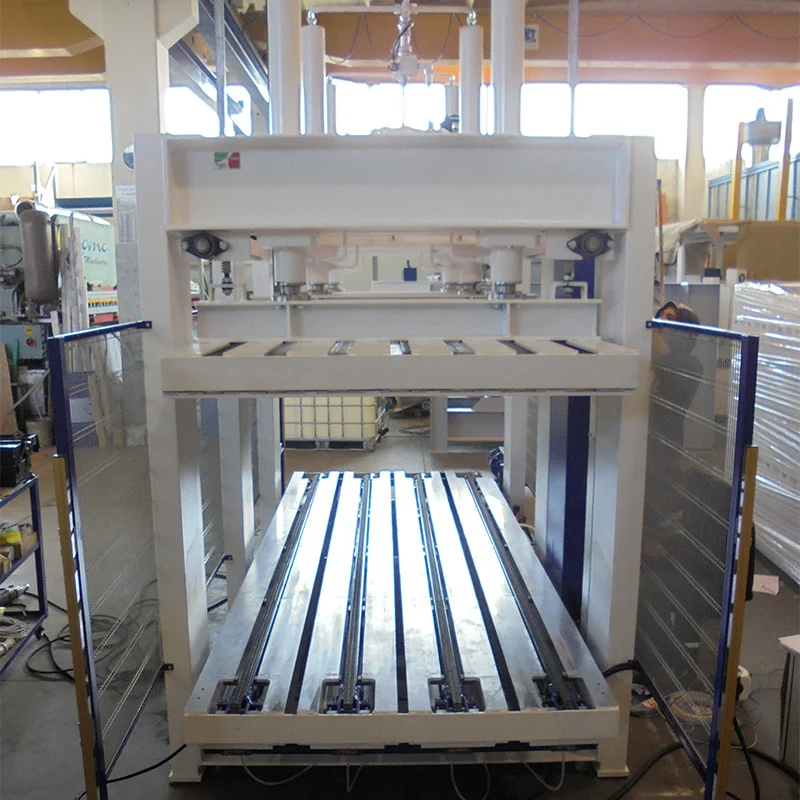

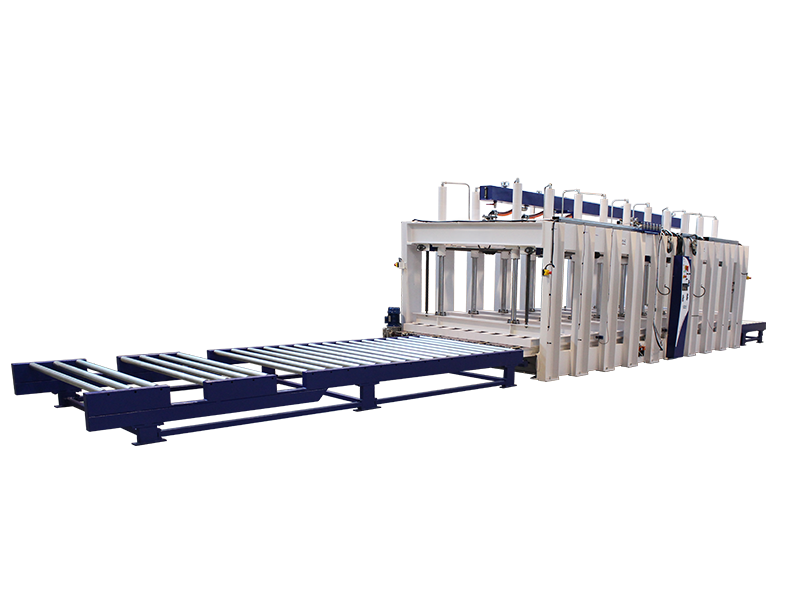

The PFP Press is loaded from the narrow side, while the PFPs Press is loaded from the long side. Both configurations feature an upper movable work surface covered with thick milled sheet metal and retractable wheels on the lower fixed work surface to facilitate material loading and unloading.
The PFP and PFPs Presses are available in three standard working sizes ranging from 2500 x 1300mm to 3500 x 1300mm. The movable work surface can also be divided into two or three sections.
Applications:
- Cold pressing of panel piles
- Cold pressing of sandwich panels
- Cold pressing of doors
Available Models:
PFP Press
- Material loading from the narrow side

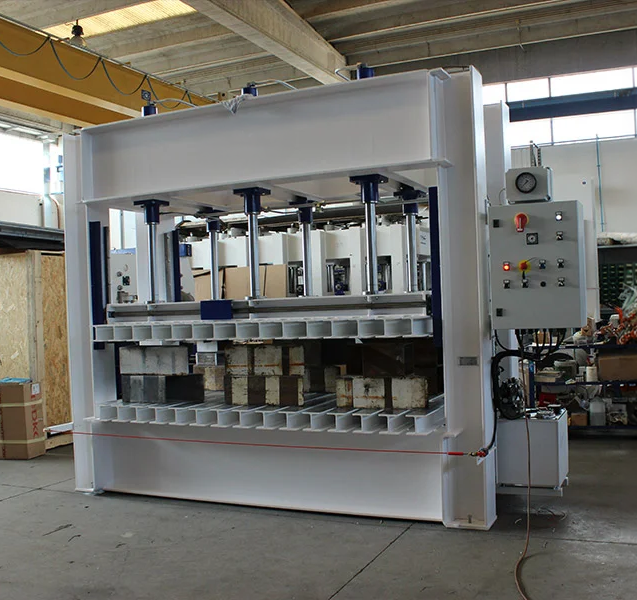

PFPs Press
- Material loading from the long side
Standard Sizes:
- 2500 x 1300mm
- 3000 x 1300mm
- 3500 x 1300mm
Standard Equipment:
The PFP and PFPs Presses include:

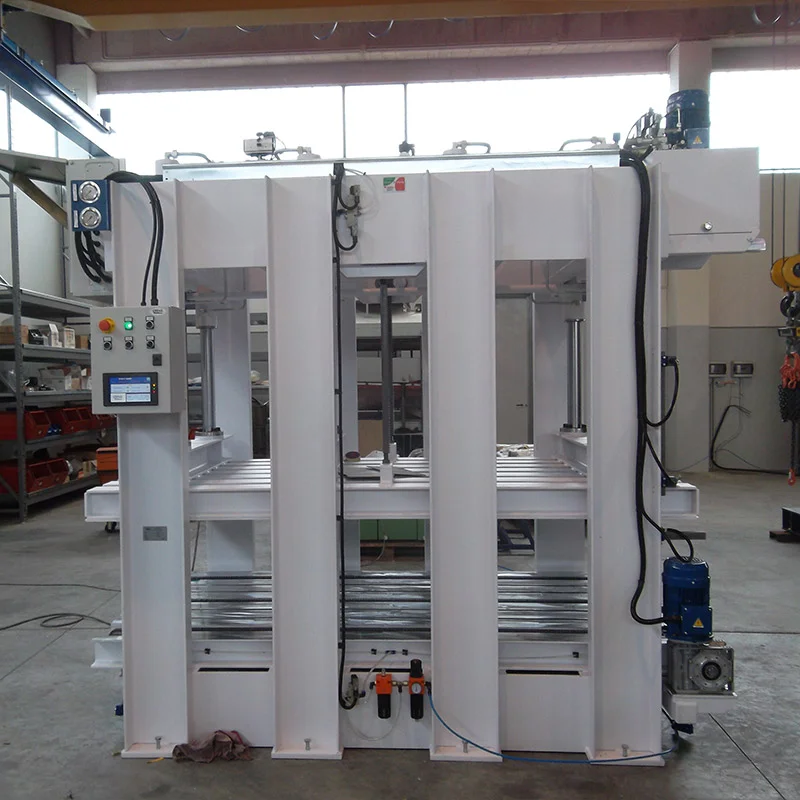

- Upper movable work surface covered with thick milled sheet metal
- Movable work surface divisible into 2 or 3 sections

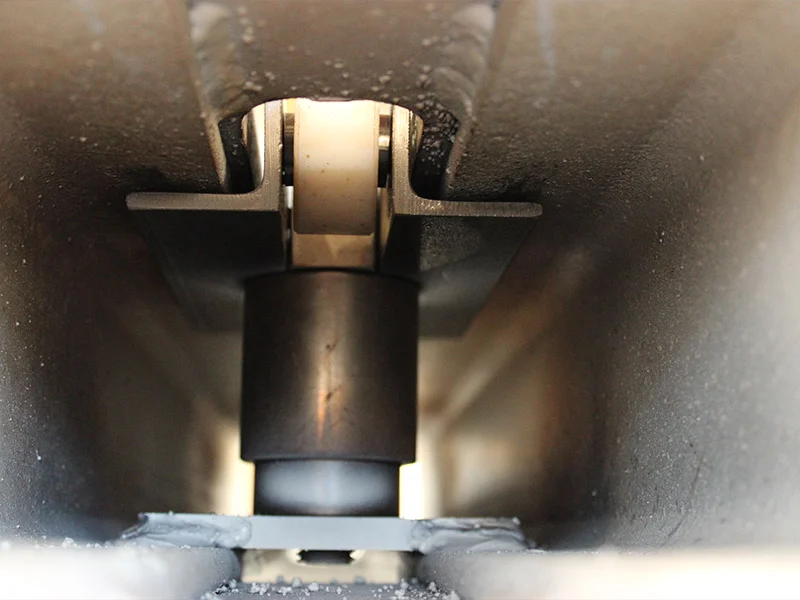

- Retractable wheels installed on the lower fixed work surface for easier material loading and unloading
- Standard control panel with pressure gauge
- Automatic pressure recovery
- Automatic opening using a standard timer
Optional Equipment:
- Extra stroke of 650mm
- Stroke of 0-1000mm

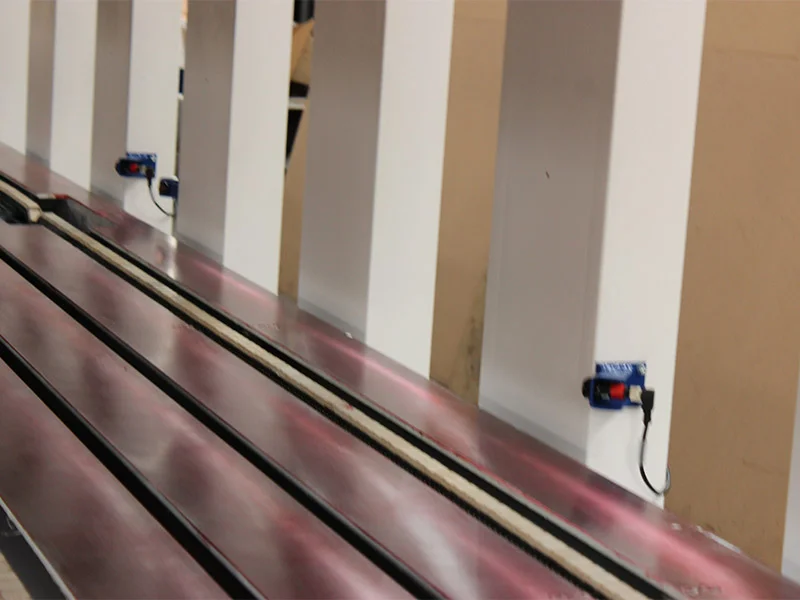

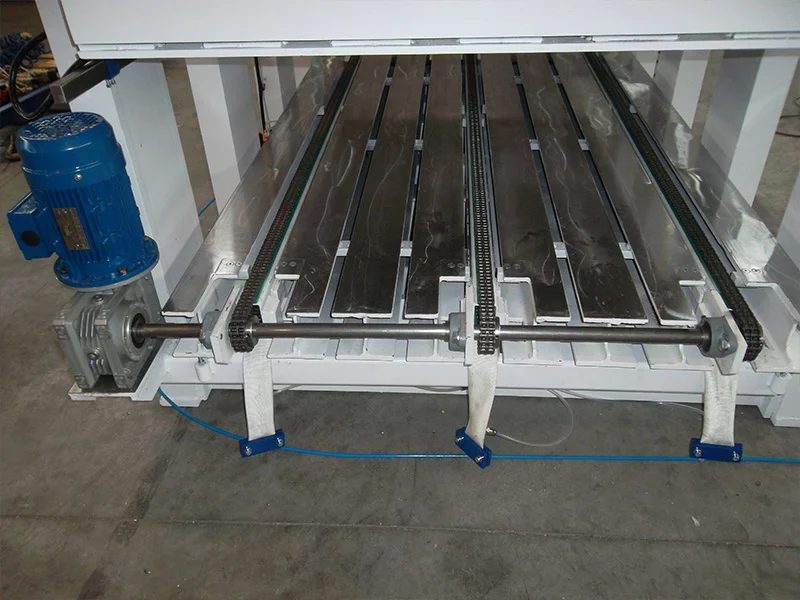

- Internal chain motorizations system

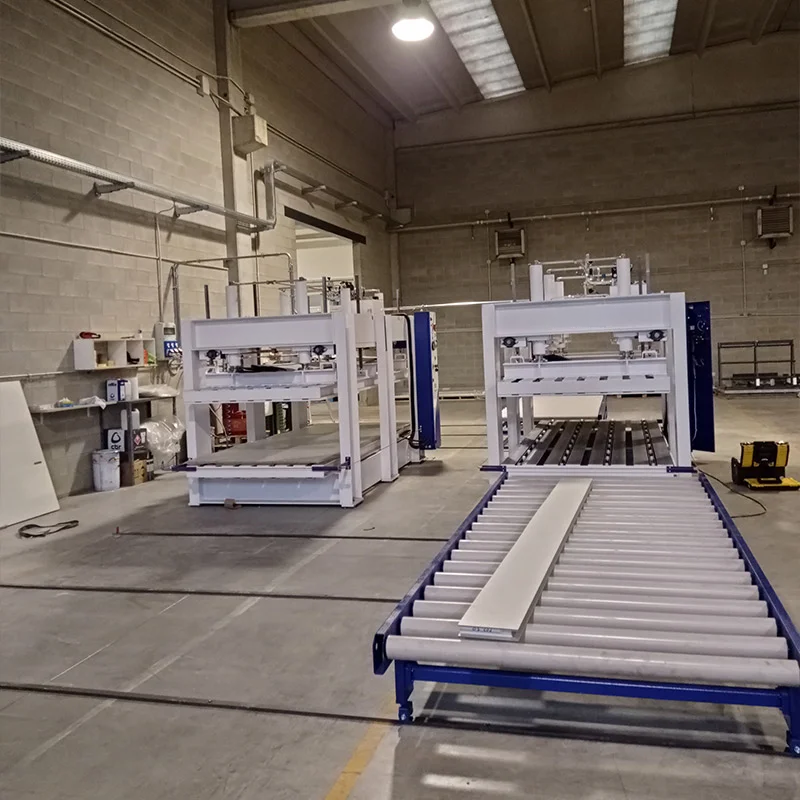

- Motorized loading and unloading

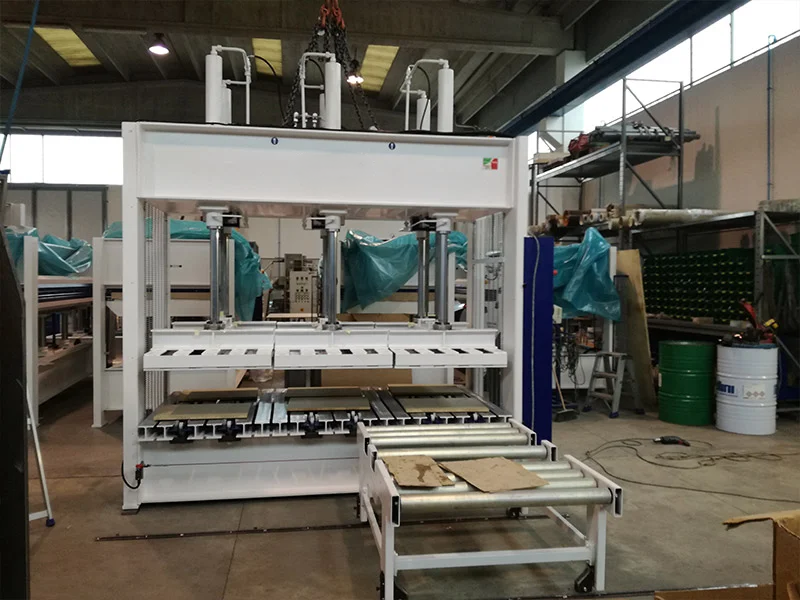

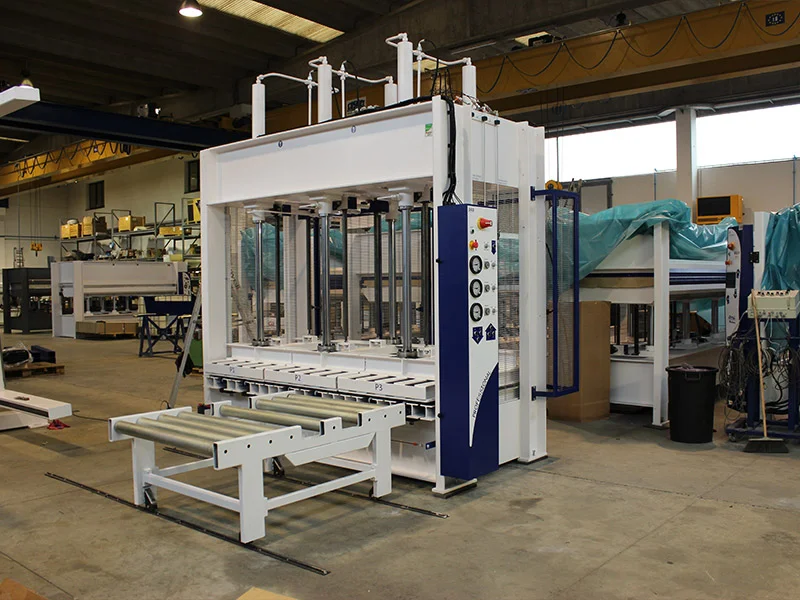

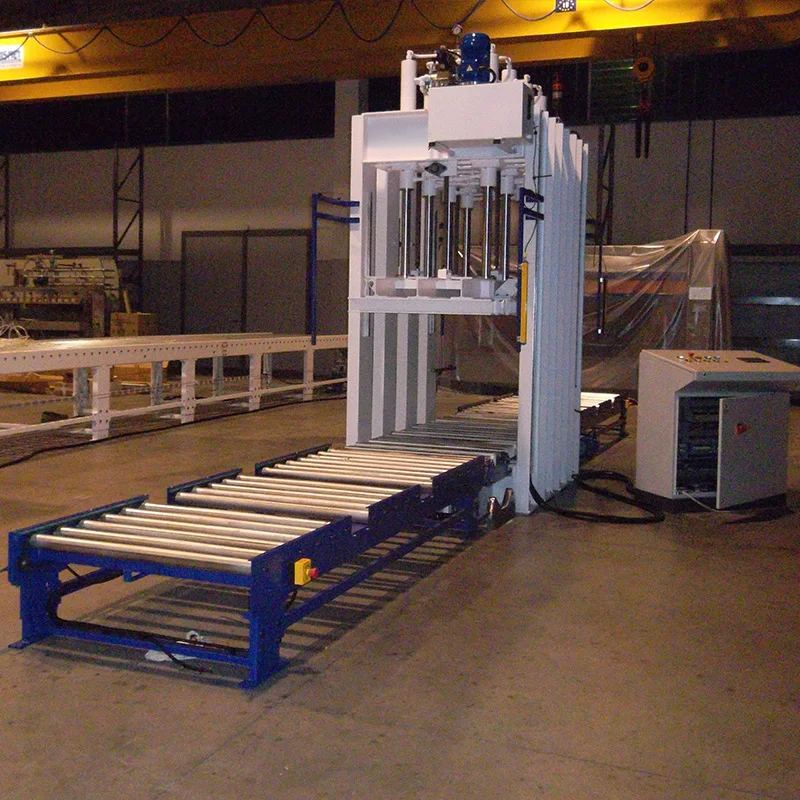

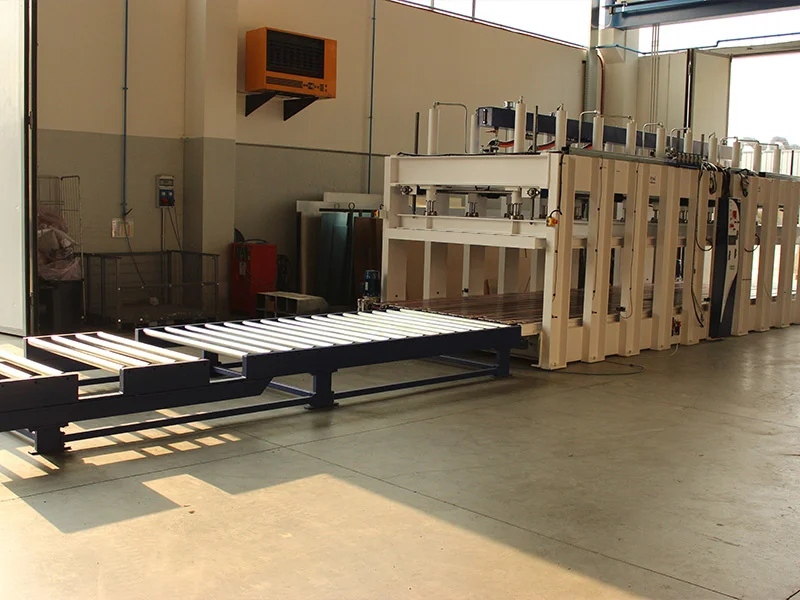

- Loading and unloading with idlers

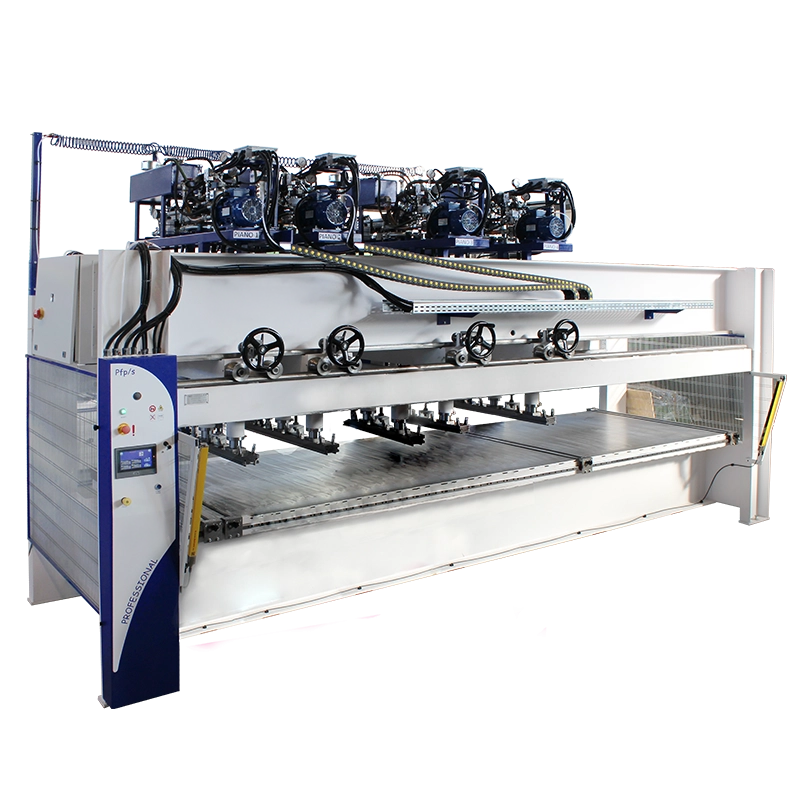

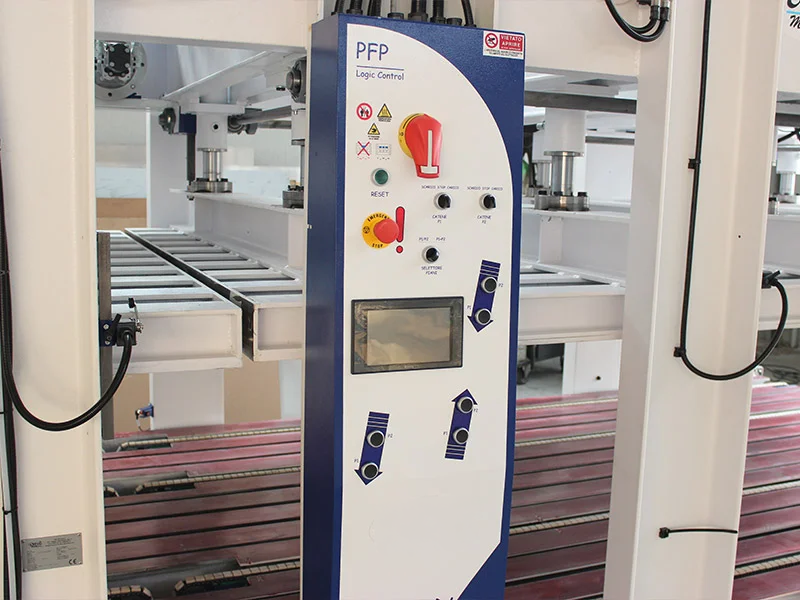

- Digital touchscreen control panel
- Simultaneous closing of work surfaces
The PFP and PFPs Presses comply with EC 2006/42/EC Machinery Directive.
