Description

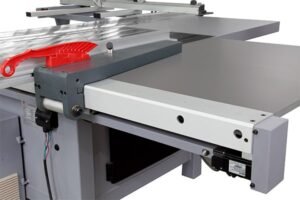

Vacuum Hood Sliding Table Saw available on 10 and 12 foot long
Product Features:
- CNC control screen for speed and precision
- CNC Longitudinal Ruler Positioning: Reduce the sliding table setup time
- High-Quality Linear Guide Rail Sawing System: Accurate and long term usability ensured.
- Automatic Angle Adjustment: The Sliding table Saw angle arrange from the control panel, form 0-45 and 90 degrees.
Total Solution for Intelligent Furniture Production:
Technical Parameters:
- Sliding Table Length (mm): 3800
- Maximum Cutting Length (mm): 3720
- Vertical Cutting Height (mm): 80 (Optional 100)
- Vertical Baffle Rod Stroke (mm): 1250
- Main Saw Lifting Mode: Automatic
- Blade Tilting Degree: 0 to 45°
- Main Saw Power (kW): 5.5
- Main Saw Size (mm): Ø300Ø30 (Optional Ø350Ø30)
- Scoring Saw Power (kW): 1.1
- Scoring Saw Size (mm): Ø120*Ø22
The Vacuum Hood Sliding Table Saw offers a comprehensive and intelligent solution for modern furniture production, combining high-precision cutting capabilities with automatic adjustments and advanced CNC positioning for consistent, professional results. Its user-friendly touch screen interface allows for easy control and quick setup, making it accessible even for less experienced operators. Built with durable, high-quality components, the Vacuum Hood Sliding Table Saw ensures long-term reliability and performance. Whether you’re handling small custom jobs or large-scale production, its versatility and efficiency make it an ideal choice for a wide range of woodworking and panel processing applications.
CNC slitting and positioning accuracy：±0.1mm
CNC slitting and moving speed：250MM/S
The maximum positioning size of the slitting support：1200mm
