Description
Precision Industrial Cutting for Modern Cabinetry

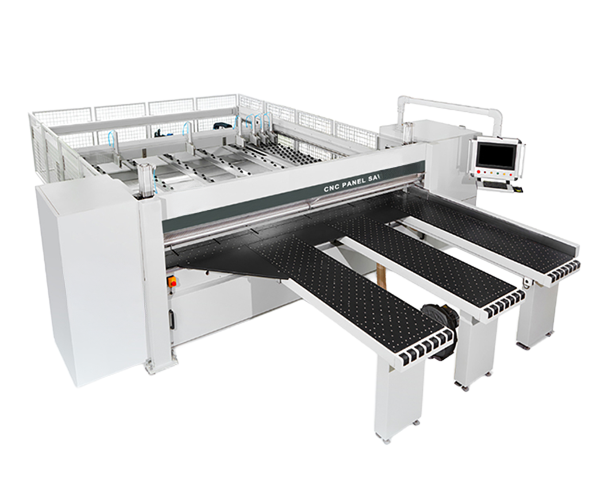

Streamline your production line with the Automatic CNC Panel Saw Rome 3300P. Engineered for speed, accuracy, and heavy-duty performance, this machine is the ideal solution for furniture manufacturers looking to optimize their panel sizing process. Whether cutting particle board, MDF, plywood, or melamine, the Rome 3300P delivers high-velocity output without sacrificing the pristine edge quality required for high-end cabinetry.
Why the Rome 3300P is the Ultimate Automatic CNC Panel Saw
1. High-Speed Servo Performance
Time is money in mass production. The Rome 3300P features a high-speed saw carriage with a return speed of up to 120 m/min. Driven by advanced servo motors and rack-and-pinion guides, this Automatic CNC Panel Saw significantly reduces cycle times, allowing you to process more panels per shift compared to standard saws.
2. Heavy-Duty 15kW Main Motor
At the heart of the machine lies a powerful 15kW (20 HP) main motor. This immense power allows the saw to cut through stacks of panels up to 75mm high effortlessly. Paired with a 2.2kW scoring saw, it ensures a chip-free finish on both the top and bottom surfaces of laminated boards.
3. Robust Monolithic Frame
Weighing in at approximately 4600 kg, the Rome 3300P is built on a massive, heat-treated steel frame. This rigid structure absorbs vibrations even at high speeds, ensuring that every cut remains perfectly straight and true—a critical feature for any industrial Automatic CNC Panel Saw.
4. Intelligent PC Control & Optimization
The machine is controlled via a user-friendly PC interface with a 19-inch LED screen. It supports seamless integration with major furniture design software, automatically optimizing cutting patterns to minimize material waste. The system is easy to learn, reducing operator training time and error.
Technical Specifications
Saw seat transmission structure
The saw wheel has an integrated side support device
Clamp seat positioning
The groove saw is adjusted by computer for the knife
Technical Specifications
| Feature | Specification |
| Model Name | Rome 3300P |
| Max. Cutting Length | 3300 mm |
| Max. Cutting Width | 3250 mm |
| Max. Cutting Thickness | 75 mm (Stack Height) |
| Main Saw Motor Power | 15 kW (20 HP) |
| Scoring Saw Motor Power | 2.2 kW (3 HP) |
| Saw Carriage Return Speed | Up to 120 m/min |
| Saw Carriage Forward Speed | 5 – 100 m/min |
| Program Fence Speed | 80 m/min |
| Main Saw Blade Diameter | 380 mm |
| Machine Weight | Approx. 4600 kg |
| Total Power Requirement | 23 kW |
