Description

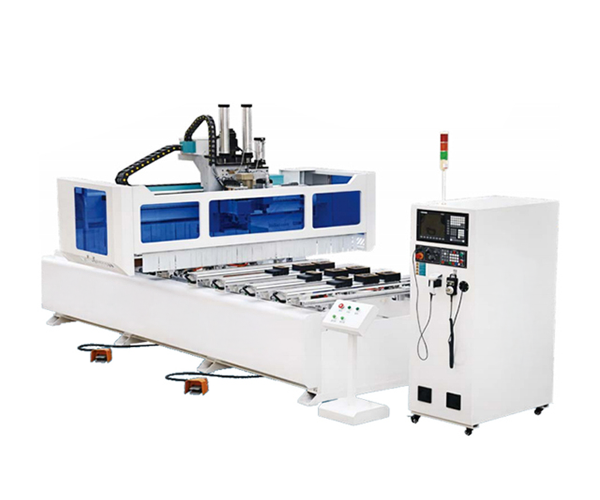

The Double Arm Row Drilling Center Pod and Rail CNC Router Tachi is the ultimate solution for industrial woodworkers demanding speed, precision, and versatility. Designed for high-volume manufacturing, this machine combines the flexibility of a Pod and Rail system with the sheer productivity of Double Arm processing. Whether you are producing complex solid wood doors, custom cabinetry, or high-precision panel furniture, the Tachi series ensures non-stop production with minimal downtime.
By integrating advanced Point-to-Point (PTP) technology, this Double Arm Row Drilling Center Pod and Rail CNC Router eliminates the bottlenecks of traditional nesting, allowing for simultaneous side-drilling, grooving, and routing on all four sides of a workpiece.
Key Features & Benefits
1. Double Arm & Dual-Station Efficiency
The hallmark of the Double Arm Row Drilling Center Pod and Rail CNC Router Tachi is its ability to maximize throughput.
-
Non-Stop Production: The machine features a dual-zone worktable. While the “Double Arm” system processes a panel in Zone A, the operator can safely unload and reload Zone B. This pendulum operation effectively eliminates idle time.
-
Simultaneous Processing: Intelligent control allows the machine to handle different tasks on separate panels, doubling your daily output compared to standard single-arm routers.
2. Advanced Pod and Rail System
Unlike flat-table nesting machines, the Pod and Rail architecture offers superior edge access and material holding.
-

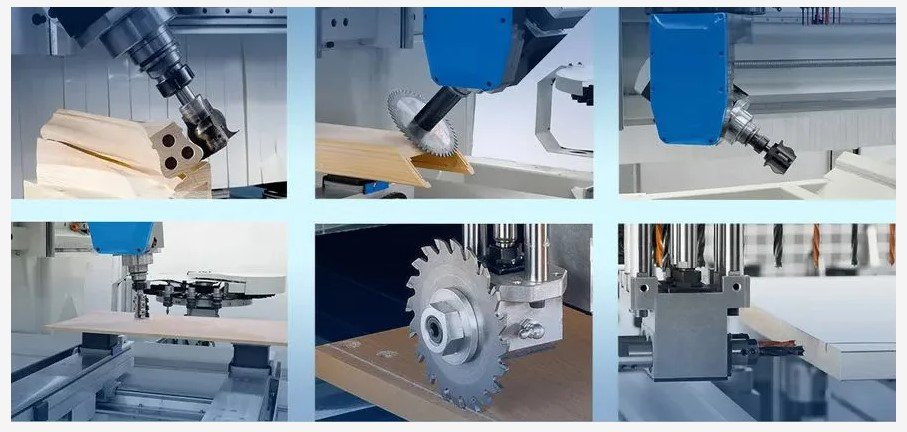

Horizontal Machining: The raised vacuum pods allow the aggregate tools to machine the edges of the panel (drilling lock holes, hinges, or side grooves) without damaging the table.
-
Modular Flexibility: The moveable pods (Schmalz-style) can be positioned to accommodate irregular shapes, solid wood arches, and heavy door panels with ease.
3. High-Speed Row Drilling (Boring Block)
Equipped with a heavy-duty drill bank, this Double Arm Row Drilling Center is a powerhouse for assembly joinery.
-
Multi-Axis Drilling: Features a configuration of vertical and horizontal drill bits (e.g., 9V+4H) that can deploy simultaneously.
-
Precision Joinery: Ensures 100% accuracy for cam-lock holes, dowels, and shelf pins, removing the need for secondary manual drilling.
4. Heavy-Duty “Tachi” Construction
The “Tachi” model is built on a rigid, industrial-grade steel frame. The heavy gantry design absorbs vibration during high-speed cutting, ensuring a smooth surface finish and extending the lifespan of your cutting tools.
Technical Specifications
-
Machine Type: Point-to-Point (PTP) Work Centre
-
Table Type: Tubeless Pod and Rail System (Moveable Vacuum Cups)
-
Drilling Unit: High-speed Boring Block (Vertical + Horizontal Arrays)
-
Spindle: High-Torque ATC Spindle (ISO/HSK Tool Holders)
-
Control System: Industrial CNC Controller (Syntec/Osai/LNC compatible)
-
Drive System: Servo Motors with Planetary Reducers for high acceleration
Applications
The Double Arm Row Drilling Center Pod and Rail CNC Router Tachi is specifically engineered for:
-
Solid Wood Doors: Perfect for routing lock cases, hinge pockets, and complex surface designs.
-
Panel Furniture: Rapid drilling and sizing of cabinet sides, shelves, and wardrobe components.
-
Office Furniture: High-precision processing of desktops and partition walls.
Why Choose the Tachi Series?
Investing in the Double Arm Row Drilling Center Pod and Rail CNC Router Tachi means investing in the future of your production line. By combining the stability of a Pod and Rail system with the speed of row drilling, you reduce labor costs and increase material yield. Upgrade your workshop with the precision of the Tachi today.
