Description
The Vacuum Light is a vacuum forming machine designed for ennobling with wood and/or laminates and for gluing cold-curved sheets. As part of the Vacuum series, it uses vacuum for coating and gluing applications on curved panels.
The Vacuum Light can be used for the creation of curved multilayer panels and the application of veneer on curved surfaces. It features an aluminum work surface with grooves for vacuum propagation and is supplied with one membrane.
The Vacuum Light is available in three working sizes, from 2360 x 1160mm to 3360 x 1160mm, with a maximum working height of 500mm in the central part of the machine.
Functions:
- Creation of curved panels with multilayer sheets
- Application of veneer on curved surfaces
- Ennobling with wood and/or laminates
- Gluing of cold-curved sheets
Final Products:
- Veneered curved surfaces
- Curved shaped panels for interior design
- Shaped panels for tables
- Shaped panels for desks
Useful Dimensions:
- 25/13: 2360 x 1160mm, maximum working height 500mm
- 30/13: 2860 x 1160mm, maximum working height of 500mm
- 35/13: 3360 x 1160mm, maximum working height of 500mm
The maximum working height refers to the central part of the machine.
Standard Equipment:

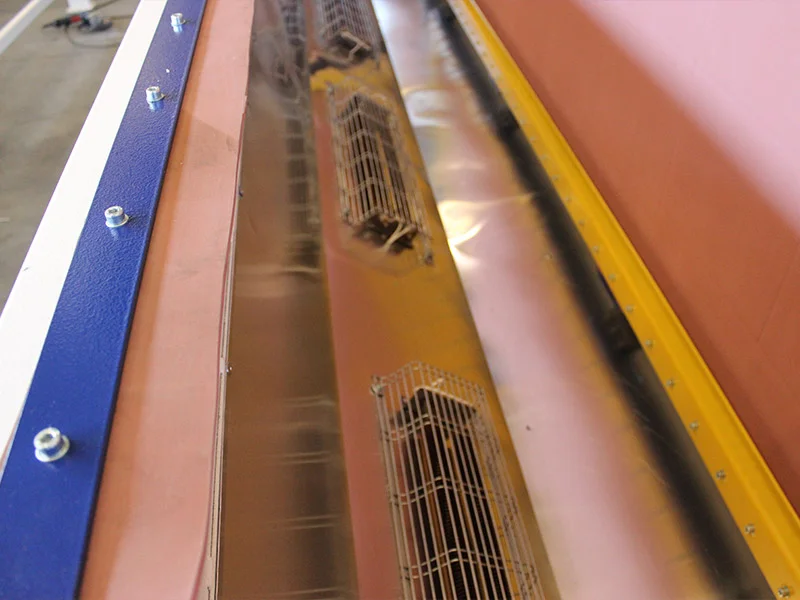

- Aluminum work surface with grooves for vacuum propagation
- Vacuum pump: 60m³
- 1 membrane

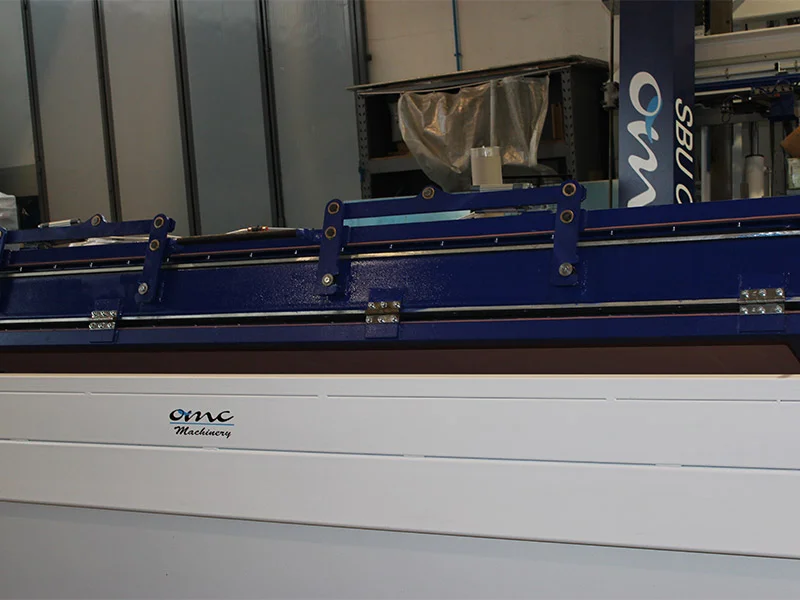

- Gasket fixed to the membrane frame to avoid tearing when changing the mold
Optional Equipment:
The Vacuum Light can be equipped with:
- Pneumatic membrane frame lifting system
- Logic Control Digital Panel
- Pneumatic membrane frame locking system
- Drilling for fixing molds

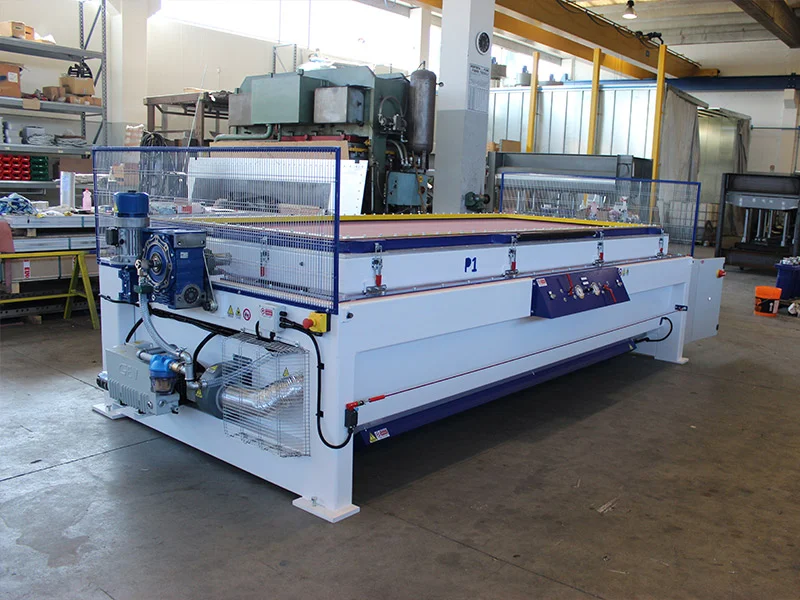

- Protective nets on three sides with safety light barrier
- Silicone membrane
