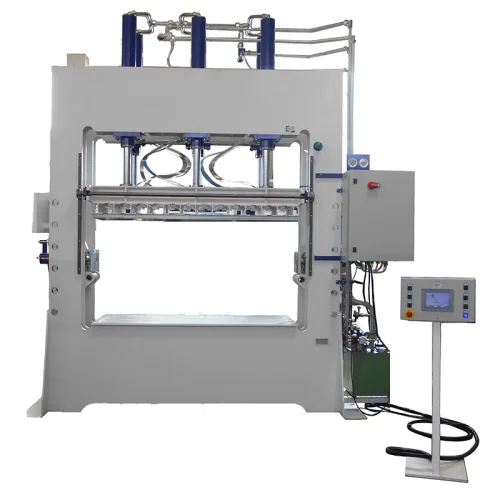

Description
The PPC Series Press is designed for bending a wide range of materials, including plywood, solid wood, MDF, and various composite materials. The press uses molds to create curved elements for a variety of applications.

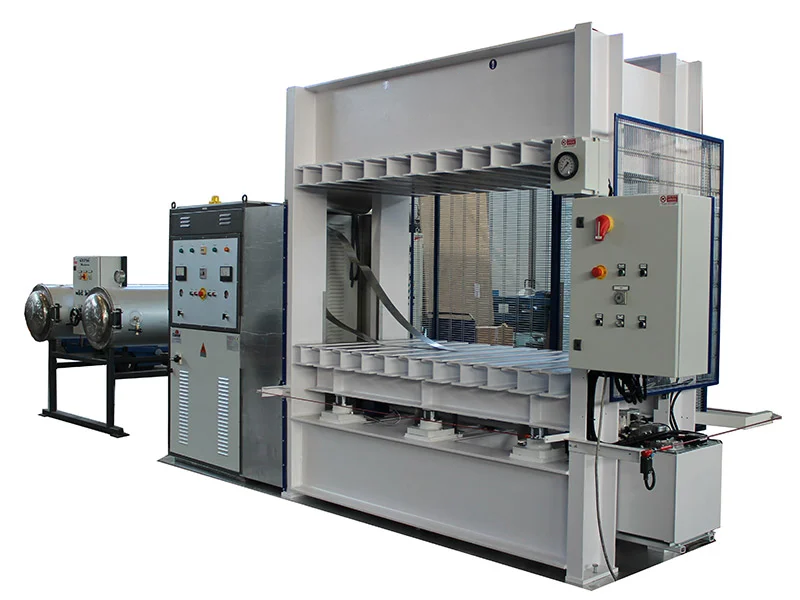

The PPC Series Press can operate as a cold press or can be equipped with a High Frequency Generator to promote gluing and increase production volumes. Different PPC models are available with either a lower or upper movable work surface.
Functions:
- Cold pressing for the creation of curved elements using molds
- Bending of solid wood, plywood, MDF, and composite materials
- High Frequency operation available for increased production volumes
Final Products:
- Chairs
- Shoulders
- Curved panels for interior design
- Beds
- Curved doors
Standard Equipment:
- Structure composed of assembled and welded S275JR beams
- Hydraulic system with double-stage power plant or pre-filled system, depending on configuration
- Milled beam surfaces for fixing molds
- Control panel
- 1000mm opening, customizable
- Automatic opening with timer
- Vertical pressure cylinders
PPCe Models:
The standard PPC Series Press PPCe configuration features a lower movable work surface.
- 13/80: 1300 x 800mm, 60 tons
- 16/80: 1600 x 800mm, 60 tons
- 20/10: 2000 x 800mm, 60 tons
- 16/80: 1300 x 800 mm, 100 tons
- 18/80: 1800 x 800mm, 100 tons
- 10/20: 2000 x 800mm, 100 tons
PPC Special Models:
The special PPC Series Press configuration features an upper movable work surface.
- 18/80: 1800 x 800mm, 90 tons
- 20/10: 2000 x 1000mm, 120 tons
- 10/22: 2000 x 1000mm, 120 tons
PPC Special model presses can also be equipped with side cylinders.
Optional Equipment:
- Customized opening

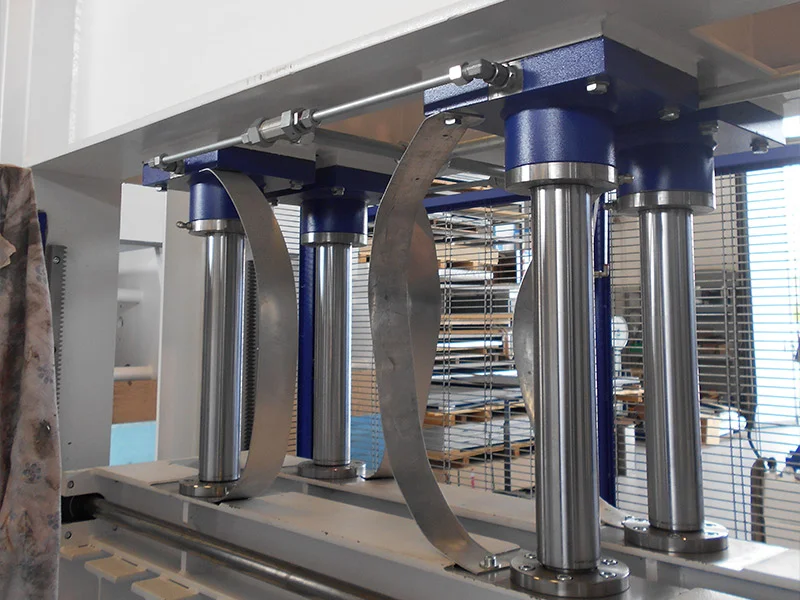

- Fixed side cylinders
- Oscillating side cylinders

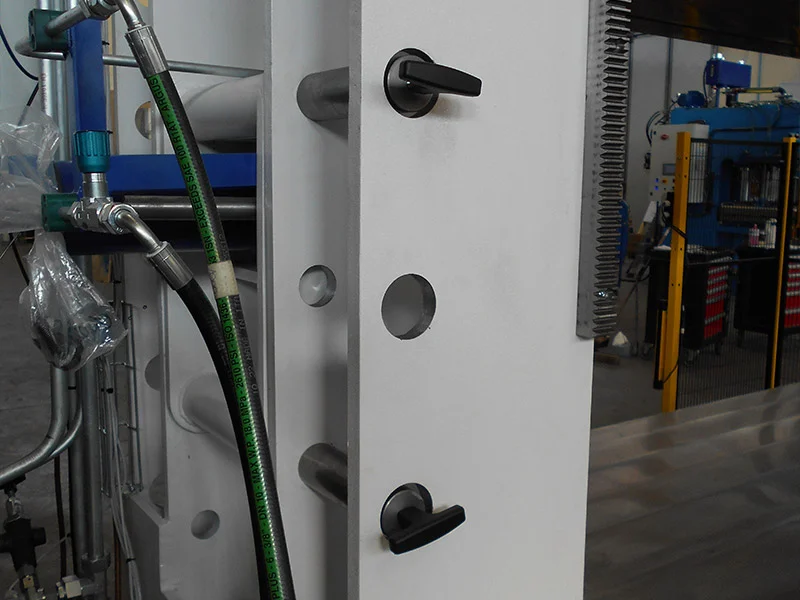

- Side cylinder height adjustment
- Logic Control digital panel
- Oxy-cut structure without welds for applications requiring strong hydraulic thrust
- Mold fixing and grooves
- Preparation for use with High Frequency

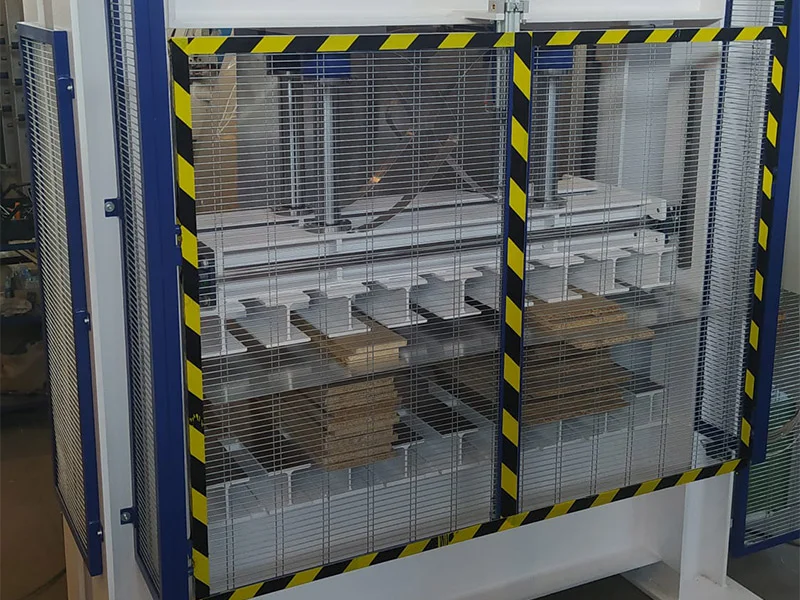

- Manual or pneumatic protections for High Frequency operation
- Pre-curving press
- Humidification chambers for preliminary wood treatment
- Industrial 4.0 system for interconnection between the press and company computer system
