Description

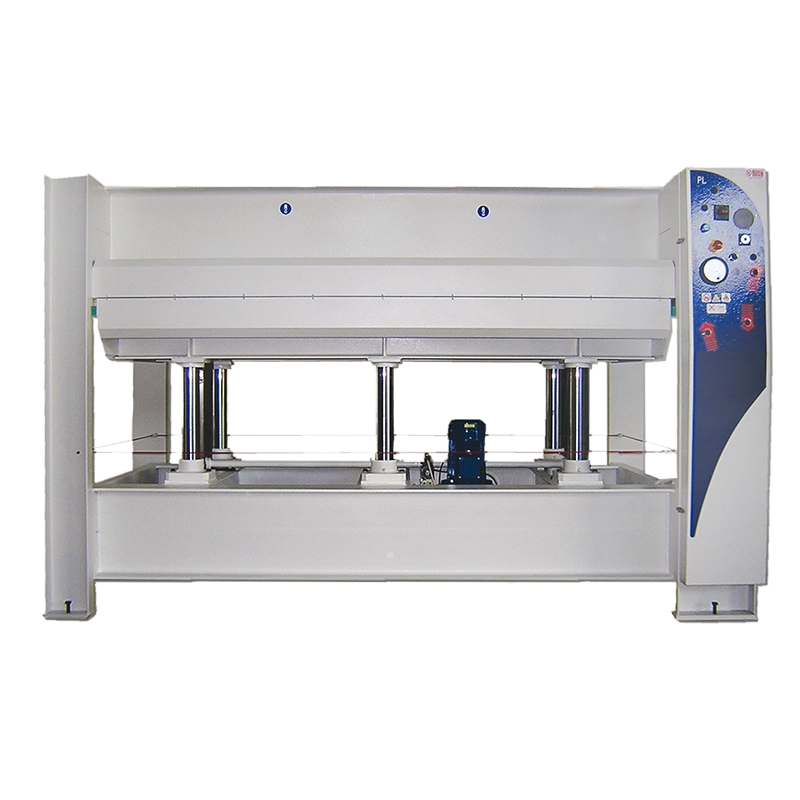

The PLF Press is specifically designed for the application of veneer or laminate coatings on MDF and chipboard panels. The press is typically used by small and medium-sized enterprises, carpenters, and artisans and can be equipped with multiple intermediate work surfaces.
The PLF Press is available in three standard sizes from 2500 x 1300mm to 3500 x 1300mm, with customized dimensions available according to customer requirements.
Three work surface configurations are available for the PLF Press, including thick steel surfaces for solid wood and hard materials, calibrated steel surfaces prepared for possible future conversion from cold to hot pressing, and chipboard surfaces covered with galvanized sheet metal.
Applications:
- Application of veneer coatings on MDF or chipboard panels
- Application of laminate coatings on MDF or chipboard panels
Standard Sizes:
- 2500 x 1300mm
- 3000 x 1300mm
- 3500 x 1300mm
- Custom sizes available according to customer requirements
Available Models:
PLFa
- Work surfaces with 20mm thick steel sheet
- Designed for pressing solid wood and hard materials
PLFb
- Work surfaces with 3mm thick calibrated steel sheet
- Prepared for possible future installation of heating coils
- Allows future conversion from a cold press to a hot press
PLFc
- Chipboard work surfaces
- Galvanized sheet metal covering
Control Panel:
The PLF Press can be equipped with a Siemens digital touchscreen control panel.
Optional Equipment:
- Customized work surface dimensions
- Customized thrust pressure
- Parallelism control
- Electrical cylinder exclusion with parallelism control
- Manual cylinder exclusion
- Increased 5mm sheet thickness on assembled work surfaces for specific applications
- Industrial 4.0 system for interconnection between the press and company computer system
- Upper movable work surface
- Transducers for setting work surface opening, closing, and slowing
- Sensors for adjusting work surface height
The PLF Press complies with EC 2006/42/EC Machinery Directive.
