Description

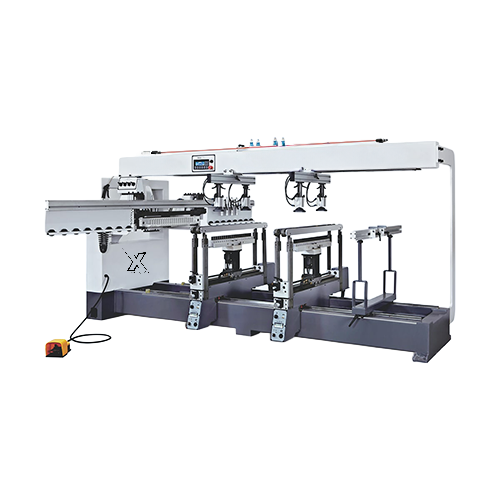

DW-303 woodworking drilling machine is a special drilling machine designed for the traditional mass production of woodworking boards, which greatly improves processing efficiency. The company’s DW series is divided into different models of woodworking drilling machines such as three-row, four-row, and six-row, which can meet the different requirements of customers
Vertical row drilling
Automatic feeding plate pusher
Precision digital display
Automatic feeding device
Automatic feeding device
| Technical parameters | DW-303 |
| Number of horizontal drill bits | 21 |
| Horizontal spindle power | 1.5KW |
| Number of vertical drill bits | 21×2 |
| Vertical spindle power | 1.5KWx2 |
| Drill shaft spacing | 32mm |
| Maximum plate thickness | 70mm |
| Maximum depth of vertical drilling | 55mm |
| Maximum depth of horizontal drilling | 40mm |

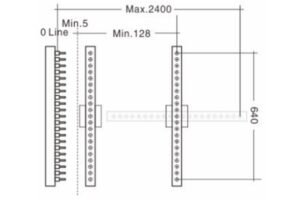

| Maximum spacing of drill row boreholes | 2450mm |
| Minimum spacing between vertical drill rows | 128mm |
| Total power | 4.5KW |
| Drill shaft speed | 2800（50HZ）
3400（60HZ） |
| Working air pressure | 6-8kg/cm2 |
| Net weight | 1220KG |
| Mechanical dimensions | 2600x3000x1700mm |
| Box size | 2700x1500x1800mm |
