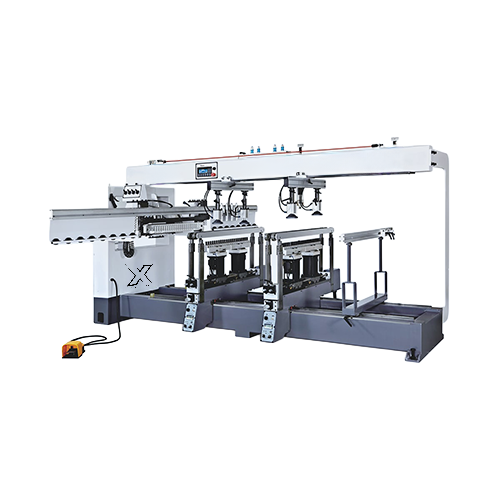

Description
Number of drill rows: 2 sets (11+11 axes) vertical + 1 group horizontal
Vertical row drilling
Automatic feeding plate pusher
Precision digital display
Automatic feeding device
Automatic feeding device
| Technical parameters | DW-305 |
| Number of horizontal drill bits | 21 |
| Horizontal spindle power | 1.5KW |
| Number of vertical drill bits | 11×4 |
| Vertical spindle power | 1.5KWx4 |
| Drill shaft spacing | 32mm |
| Maximum plate thickness | 70mm |
| Maximum depth of vertical drilling | 55mm |
| Maximum depth of horizontal drilling | 40mm |

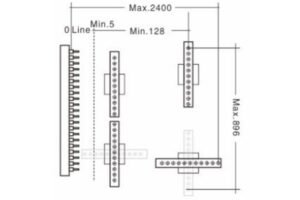

| Maximum spacing of drill row boreholes | 2450mm |
| Minimum spacing between vertical drill rows | 128mm |
| Total power | 7.5KW |
| Drill shaft speed | 2800（50HZ）
3400（60HZ） |
| Working air pressure | 6-8kg/cm2 |
| Net weight | 1290KG |
| Mechanical dimensions | 2600x3000x1700mm |
| Box size | 2700x1500x1800mm |
