Description

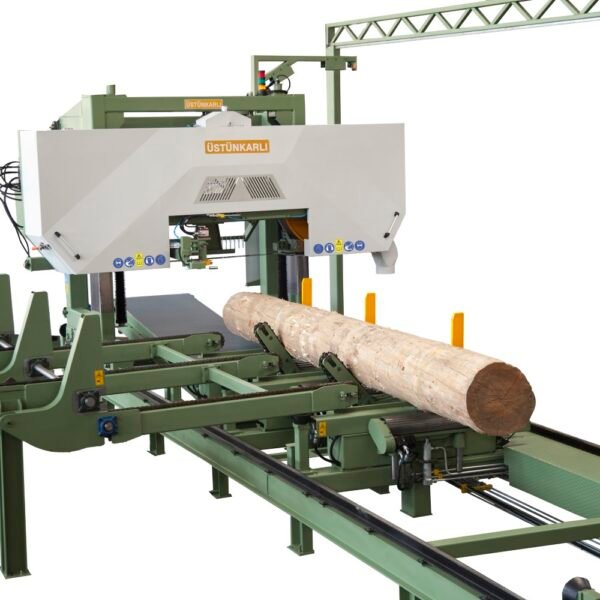

Horizontal log bandsaw is designed to process raw logs to measured thickness, there are two control option on the machine as standard. Joystick by the operator or from the remote control panel. Machine has 5 5/16″ inches, 150 mm between the wheels, have 2.2 kw motor for wood band saw movement. Default main saw is 37 kw (50 HP). Avarage weight is 8840 kg, 19488 lbs.
Click here to see all resaws.
canada, toronto, moon machinery, horizontal log bandsaw, limber yard, log processing, wood mizer
Key Features
Two side hydraulic move blade guides
Hydraulic blade tensioning, automatic tension regulation with plate springs
Hydraulic up-down move arm for separating cut boards on to the transporter
Digital system for machine control and encoder for height positioning, memory for measured thickness, 50 optimizing cut programs for different diameters and widths
Joystick control with six function buttons
Remote control operating panel
Hydraulic system, 90° motion, hydromotor driven log rotating arms 2pcs
Hydraulic system log support arms 3pcs
Hydraulic system with double acting cylinder log clamping hooks 3pcs
Pneumatic saw wheel brake system
