Description

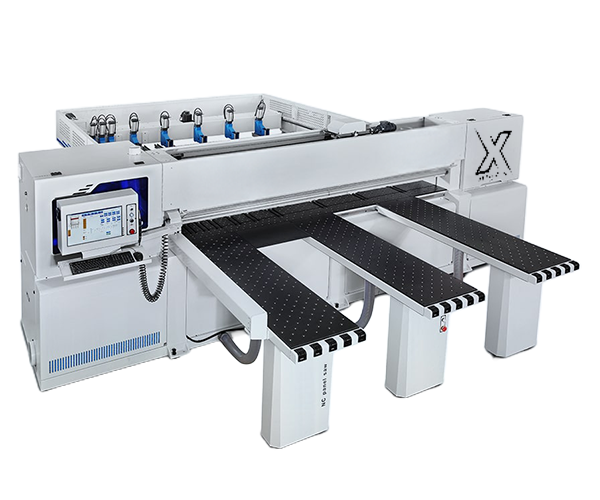

3200SP Automatic CNC Panel Saw is a fully automatic cutting equipment that can provide a complete panel cutting solution for custom furniture manufacturing. It adopts 19″ LED display and PC computer control system, which can be connected with various brands of production data software and directly input production data. It greatly improves production efficiency and reduces the daily production cost of the factory。
It can be connected with a variety of management software to achieve intelligent and seamless production。
European technical design。
High precision and high efficiency。
Suitable for high-precision production requirements

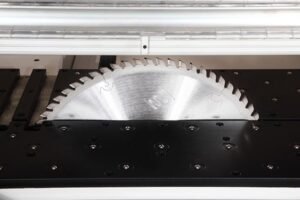

Advanced flange fastening structure, more convenient to assemble and disassemble the saw blade. The saw seat has a fast rise speed, and the maximum cutting height is 120mm (optional 450mm saw blade)

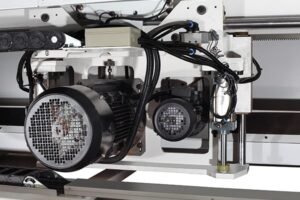

Saw seat and saw blade drive

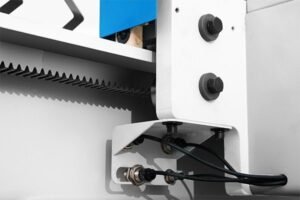

Side Mechanism

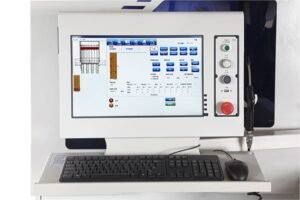

PC computer control system

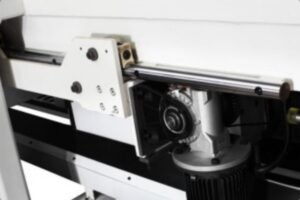

Saw seat sliding mechanism

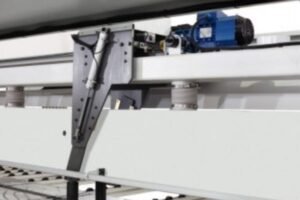

Splint push device
New splinting device

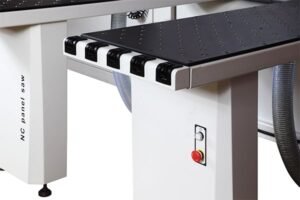

Air cushion floating front table
| Technical parameters | XPC-3200SP |
| Maximum size for processing | 3100*3100*90mm |
| Main saw power | 15KW |
| Slot saw power | 1.5KW |
| Feeding motor power | 2KW |
| The saw truck drives the motor | 2KW |
| Maximum sawing height | 90mm (optional 120mm.)） |
| Saw speed | Max.85m/min |
| saw seat return speed | 100m/min |
| Feeding speed | Max.85m/min |
| Main saw speed | 4300rpm |
| Groove saw rotation | 5900rpm |
| Main saw size | φ400 （Optionalφ450） |
| Slot saw size | φ200mm |
| Operating voltage | 380V, 50HZ |
| Working air pressure | 6-8kg/cm2 |
| Total power | 27.3KW |
| Body weight | 5860KG |
| Vacuum port diameter | φ200×2, φ100×2 |
