Description

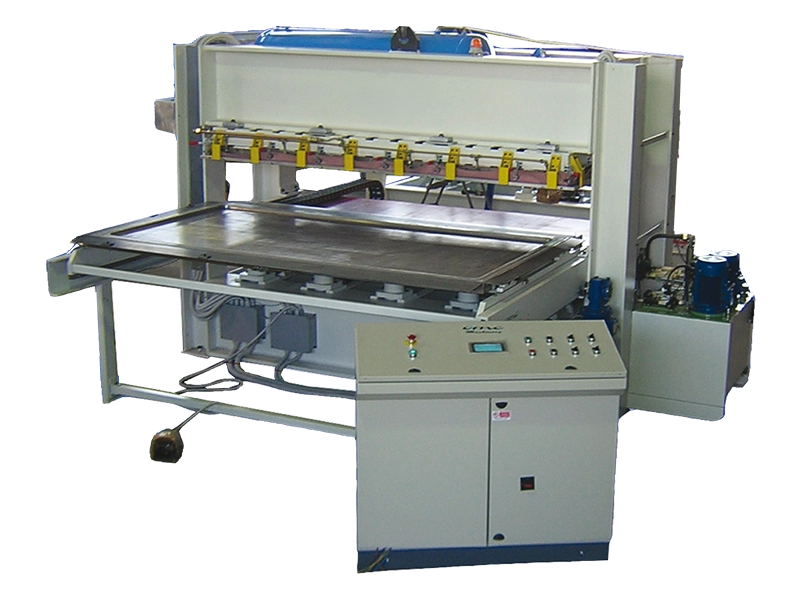

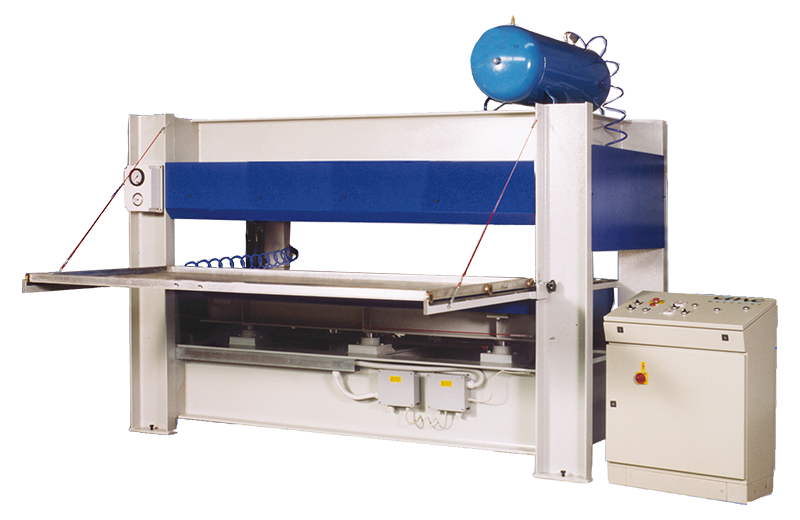

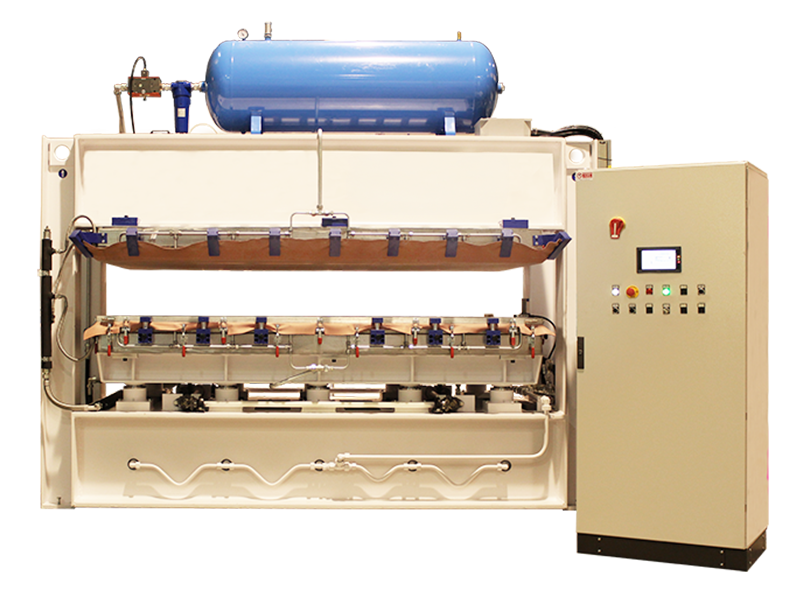

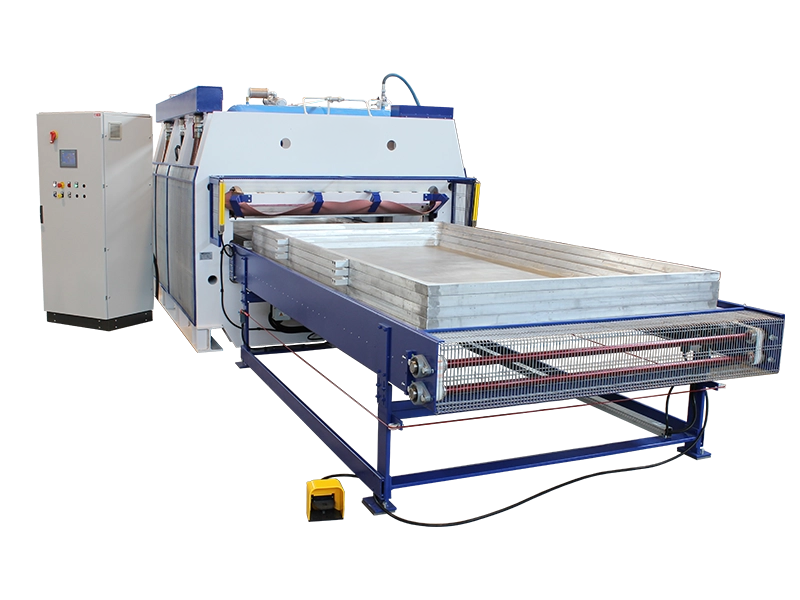

The PL Conversion M is a membrane press designed for the application of 3D thermoforming films and veneer on one side of shaped surfaces. Part of the PL Conversion series, it uses heat, air, and vacuum and is designed to achieve production volumes suitable for small and medium-sized enterprises.

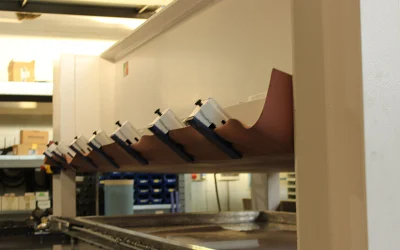

The PL Conversion M can apply PVC, PPE, ABS, and other 3D thermoforming films with or without a membrane, depending on the application. For veneer application on shaped surfaces, the use of the membrane is always required. The press is equipped with a system that allows the membrane to be quickly attached and removed.
The PL Conversion M is also a standard hot/cold press for veneer and laminate application. Material is manual loaded from the long side, with two available working sizes and pressure configurations.
Functions:
- Application of 3D thermoforming films including PVC, PPE, and ABS on shaped surfaces
- Thermoforming with or without membrane depending on the application
- Application of veneer on shaped surfaces
- Hot/cold pressing for veneer and laminate application
Final Products:
- Various types of shaped panels
- Shaped components
- Furniture doors
- Bathroom furniture doors
- Kitchen furniture doors
Loading:
- Manual loading from the long side
Working Sizes:
PL Conversion M 25/13
- Working Area: 2350 x 1180mm
- Thrust: 3.5 + 1 kg/cm²
PL Conversion M 30/13
- Working Area: 2800 x 1180mm
- Thrust: 4 + 1 kg/cm²
Common Features:
- Solid drilled steel work surfaces
- Maximum working temperature: 250°C
- Maximum specific working pressure: 30 kg/cm²
- Steel plate work surfaces with holes for the circuit
- Oil boiler with maximum oil temperature of 120°C, customizable for higher temperatures
- Diathermal oil heating fluid
- Digital touchscreen control panel
Standard Equipment:
- 1 rubber membrane
- Diathermal oil heating
- 1 vacuum pump
Optional Equipment:
The PL Conversion M can be equipped with accessories available for the PL Conversion series, including:

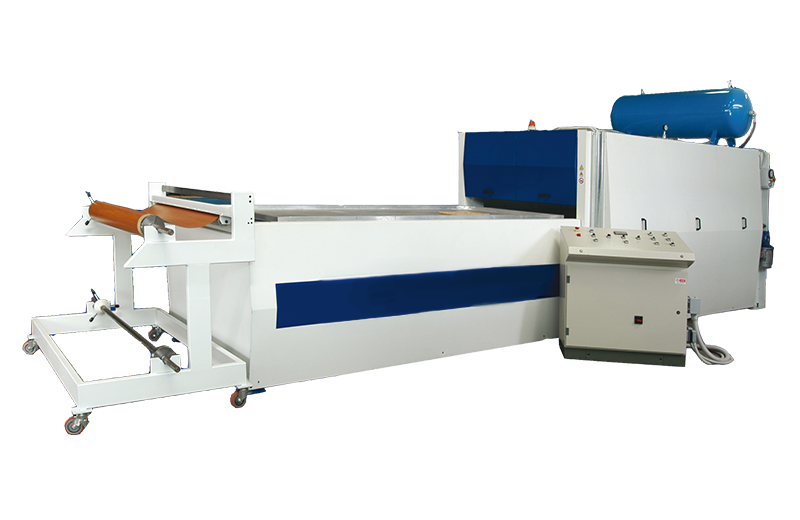

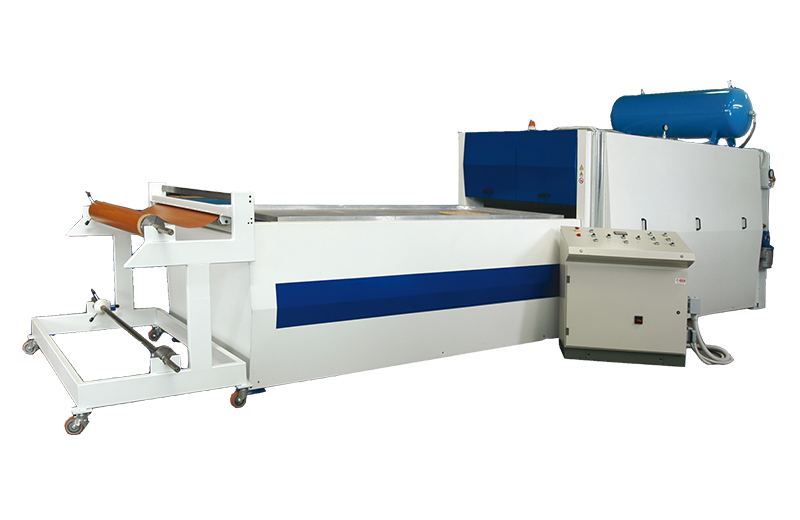

- PVC unwinding cart with manual cutting
- PVC unwinding trolley with pneumatic cutting
- Load group partializing bar
- JIG System 25/14, magnetic
- JIG System 30/14, magnetic
- JIG System 25/14, electronic
- JIG System 30/14, electronic
- 1400mm antistatic brush
- Shiny PVC system with intermediate flange, software, and silicone membrane
- Modular chamber, 90mm or 180mm
- Surface cleaning system for glossy PVC
- High Gloss PVC system
- PVC granulator
- PVC tensioning device
- Tray scanning with distension and PVC cutting
- Rotation multi-station PVC warehouse with 10 coils
- Suction cup tipper unloader with motorized roller conveyor
The PL Conversion M complies with the EC 2006/42/EC Machinery Directive.
