Description

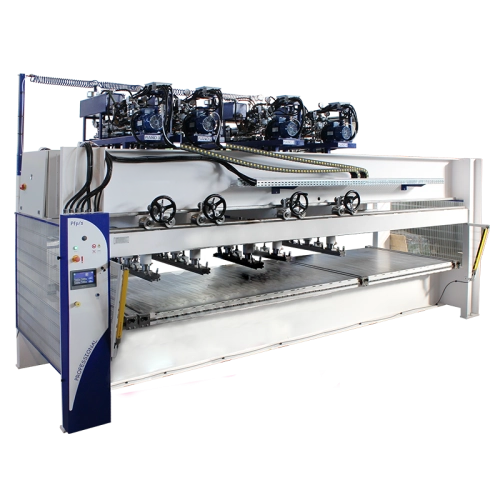

The Hinge Press is designed for the application of hinges in the production of wooden crates. It features adjustable piston-holder crossbars that can be manually moved along the length of the machine using a hand wheel.
The upper plane allows for retractable hinge insertion during pressing, while a rack system maintains parallelism during ascent and descent. Steel guides allow each crossbar to be manually positioned along the length of the machine.

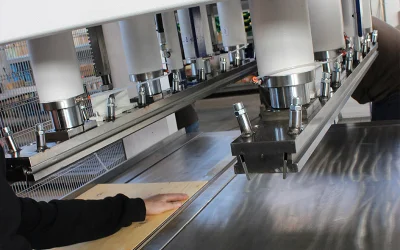

Side guides with a sled support internal stops on the work surface for positioning the plywood to be spliced.
Key Features:
- Designed for hinge application in wooden crate production
- Manually adjustable piston-holder crossbars

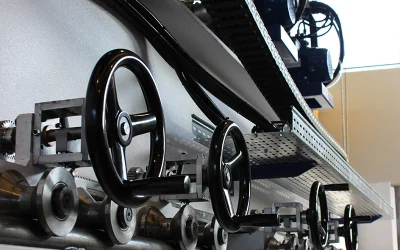

- Handwheel adjustment along the machine length
- Upper plane for retractable hinge insertion during pressing
- Rack system to maintain parallelism during ascent and descent
- Steel guides for manual movement of each crossbar
- Side guides with sled for supporting internal stops
Press Configuration:
Upper Plane
- 4 piston-holder crossbars
- Manually adjustable over a length of 5000mm

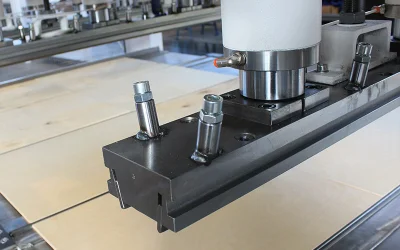

- 4 press pistons per crossbar
Lower Plane
- Covered with sheet metal
