Description

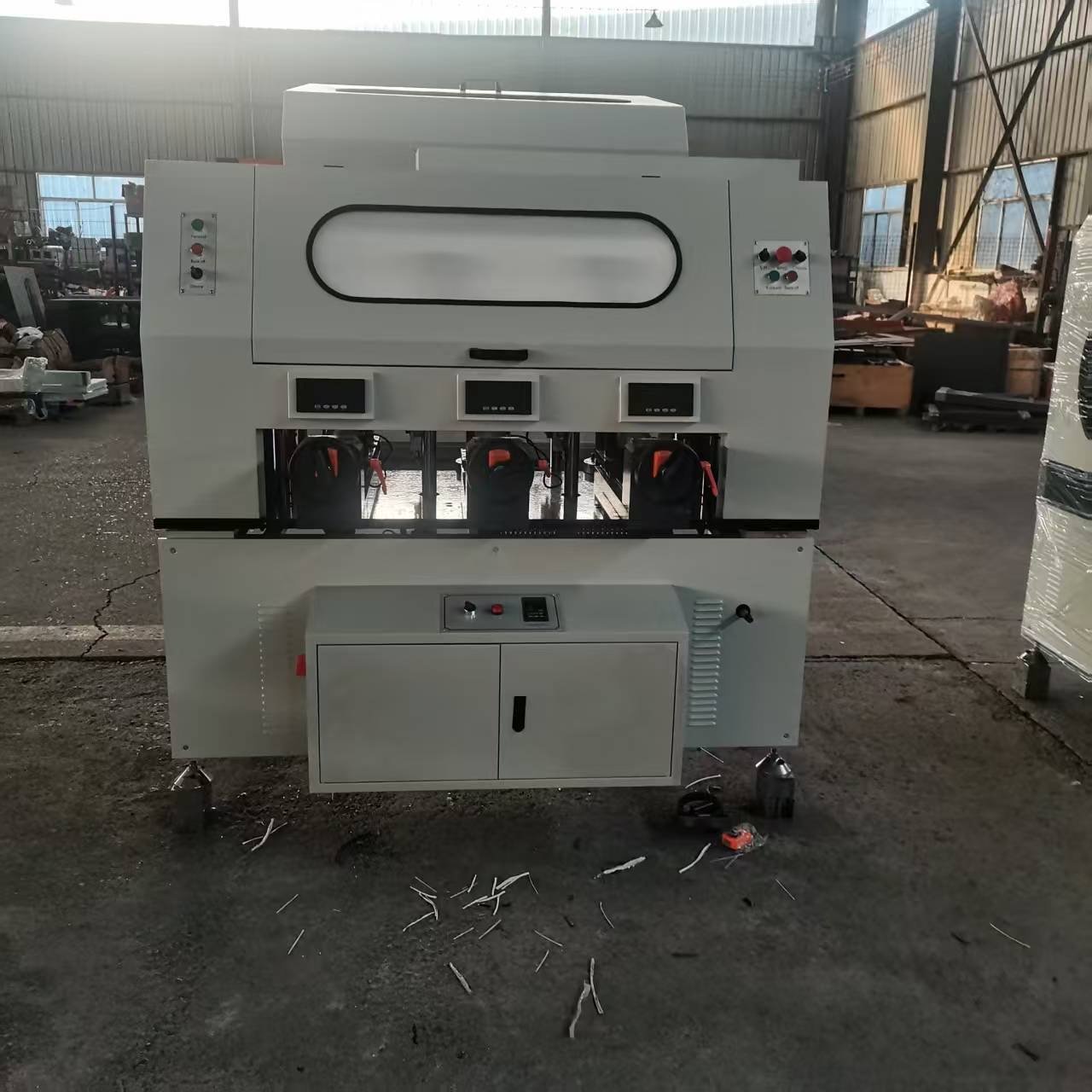

The Thermal Break Polyamide Strip Zipping Machine is designed for the efficient assembly of thermal break aluminum profiles by securely joining polyamide thermal barrier strips with aluminum profile sections. This process creates high-performance thermal break profiles that offer excellent insulation properties for modern window, door, and curtain wall systems.

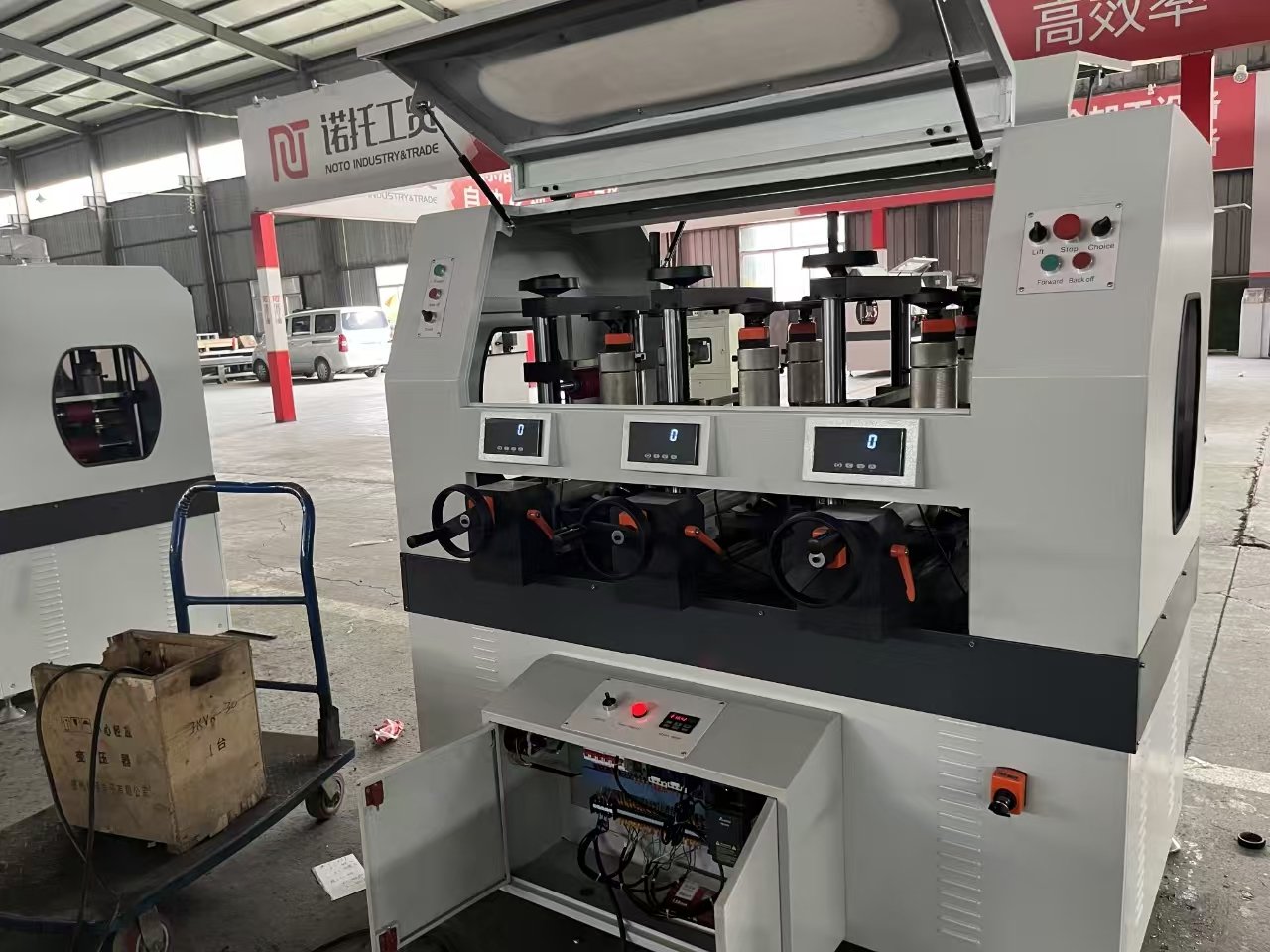

Using hardened rolling discs, the Thermal Break Polyamide Strip Zipping Machine precisely presses knurled aluminum profiles and polyamide strips together to form a durable composite profile. The machine is equipped with three groups of electrically controlled hardened rollers, allowing quick profile changeovers and improved production flexibility.
The Thermal Break Polyamide Strip Zipping Machine features independent drive control for all six rollers, ensuring stable rolling/zipping performance, higher processing speeds, and increased efficiency. Adjustable roller spacing accommodates a wide range of thermal barrier strip sizes, making the machine suitable for diverse production requirements.
For maximum control and precision, the machine incorporates a frequency inverter with stepless speed adjustment and high-precision screw drive systems. Two-axis adjustment capability further simplifies setup and profile alignment, helping manufacturers maintain consistent product quality.
Key Features:
- Designed for thermal break aluminum profile assembly
- Combines aluminum profiles with polyamide thermal barrier strips
- Three groups of electrically controlled hardened rollers
- Independent drive system for all six rollers
- Adjustable roller spacing for various strip sizes
- Two-axis adjustment system for improved flexibility
- Stepless speed control via frequency inverter
- High-precision screw drive system for accurate operation
Technical Specifications:
- Power Supply: 220V, 50Hz, 3 Phase
- Main Motor Power: 4kW
- Air Pressure: 0.5-0.8MPa
- Feeding Speed: 0-90m/min (variable)
- Rolling Disc Diameter: 210mm
- Coaxial Rolling Disc Distance: 0-80mm
- Front and Rear Rolling Disc Distance: 0-100mm
- Profile Support Dimensions: 5000 x 450 x 1100mm
- Machine Dimensions: 1300 x 1100 x 1700mm
- Overall Dimensions (including profile support frame): 6700 x 1300 x 1100mm
- Weight: 1200kg
The Thermal Break Polyamide Strip Zipping Machine is an ideal solution for manufacturers seeking efficient, precise, and reliable thermal break profile production. By providing consistent strip insertion and profile assembly, the Thermal Break Polyamide Strip Zipping Machine helps improve product quality, increase throughput, and support modern energy-efficient building systems.
