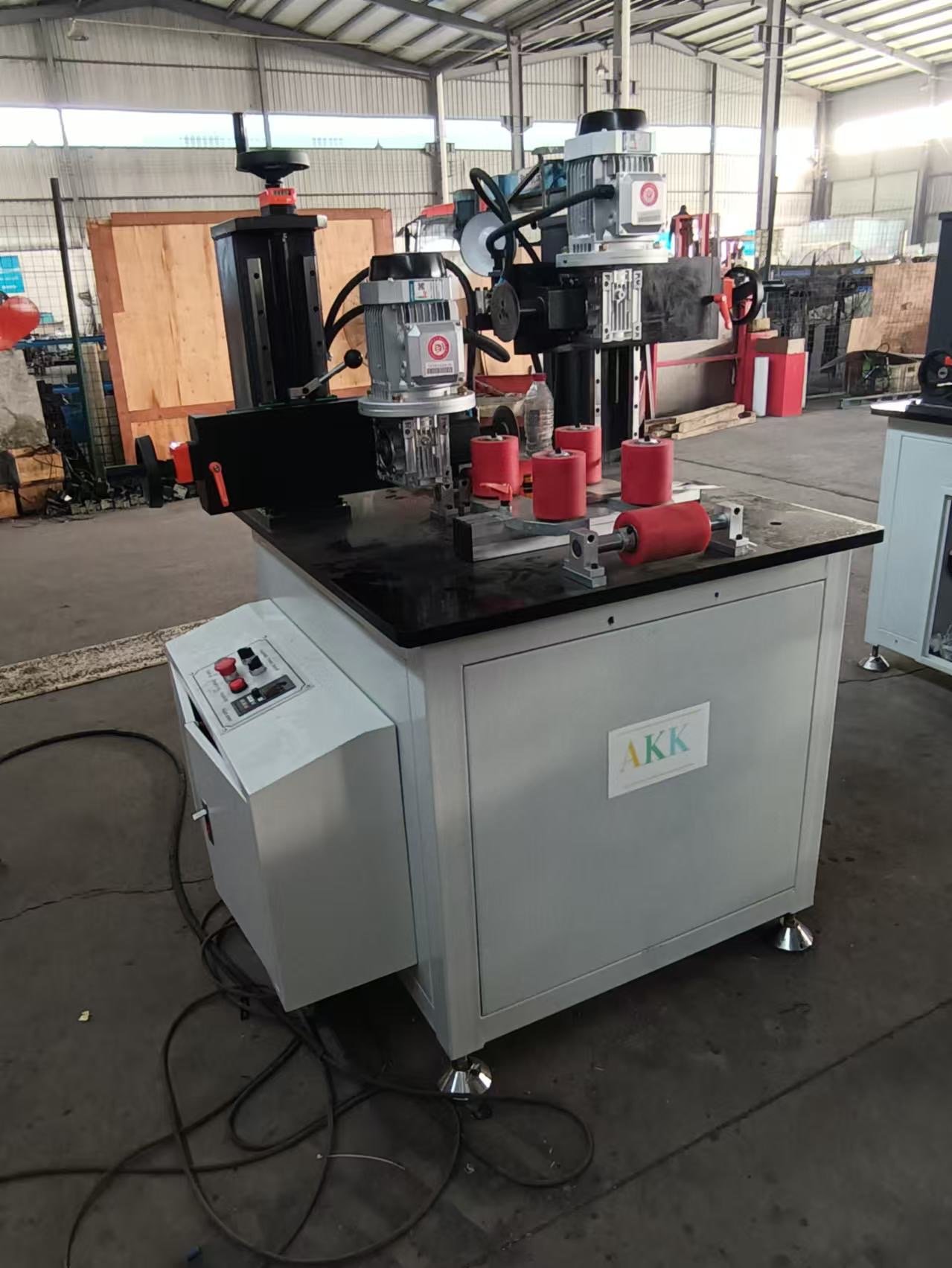

Thermal Break Assembly Knurling Machine

The Thermal Break Assembly Knurling Machine is designed for the efficient processing of thermal break aluminum profiles, combining knurling and thermal barrier strip insertion in a single operation. Engineered specifically for the production of thermal break windows, doors, and curtain wall systems, it improves productivity while ensuring consistent profile quality and superior structural performance.

The machine utilizes high-speed rotating knurling cutters to create precise grooves in aluminum profiles, increasing the horizontal shear strength between the aluminum profile and the thermal break strip. The critical process enhances the durability and long-term reliability of thermal break assemblies while improving the overall quality of finished products.

Equipped with a variable frequency drive, the Thermal Break Assembly Knurling Machine offers stepless speed adjustment for optimal processing flexibility. The electrically controlled knurling head allows quick and stable adjustment for different profile sizes, reducing setup times and increasing production efficiency.

For enhanced versatility, the machine can simultaneously insert nylon or PVC thermal break strips during the knurling process. When integrated with optional laminating and clamping systems, the Thermal Break Assembly Knurling Machine can perform knurling, strip feeding, and protective film application within a streamlined production workflow.

Key Features:

• Designed specifically for thermal break aluminum profile production
• High-speed knurling system for increased profile shear strength
• Simultaneous thermal break strip insertion capability
• Compatible with nylon and PVC thermal break strips
• Stepless speed control via frequency inverter
• Electrically controlled knurling cutter adjustment
• Optional integration with laminating and clamping systems
• Suitable for a wide range of thermal break profile dimensions

Technical Specifications

• Power Supply: 230V, 60Hz, 3 Phase
• Input Power: 1.1kW
• Air Pressure: 0.5-0.8MPa
• Feeding SpeedL 10-105 m/min (variable)
• Knurling Cutter Diameter: 90mm
• Thermal Break Strip Height: 0-55mm
• Maximum Profile Section: 200 x 170mm
• Distance Between Thermal Break Strips: 5-200mm
• Profile Support Dimensions: 5000 x 450 x 900mm
• Machine Dimensions: 1000 x 900 x 1580mm
• Overall Dimensions (with Roller Bench): 6580 x 1000 x 900mm
• Weight: 800kg

The Thermal Break Assembly Knurling Machine is an ideal solution for manufacturers seeking reliable, efficient, and high-quality thermal break profile production. By combining knurling, strip insertion, and optional laminating capabilities into a single system, the Thermal Break Assembly Knurling Machine helps reduce production time, improve profile strength, and maximize manufacturing efficiency.
