Description

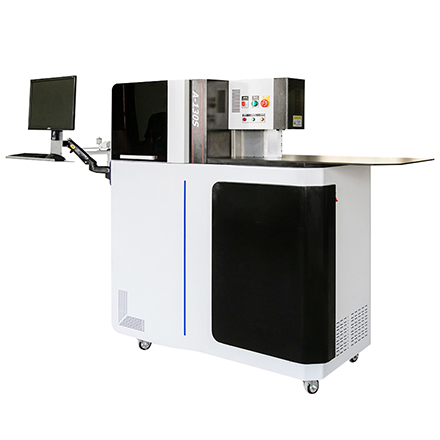

The High Precision CNC Channel Letter Bending Machine AEL-A130S is an advanced solution designed for the production of aluminum profile channel letters, aluminum coil letters, and custom signage applications. Engineered for exceptional accuracy and repeatability, this machine is ideal for manufacturers producing profile letters, borderless letters, and other high-end channel letter products.
The High Precision CNC Channel Letter Bending Machine AEL-A130S combines servo motor control with a dual-axis telescopic bending system to deliver outstanding bending torque and forming precision. Capable of processing aluminum profiles ip to 1.2mm thick, the machine excels at producing small letters, tight-radius bends, and complex shapes with minimal manual finishing.

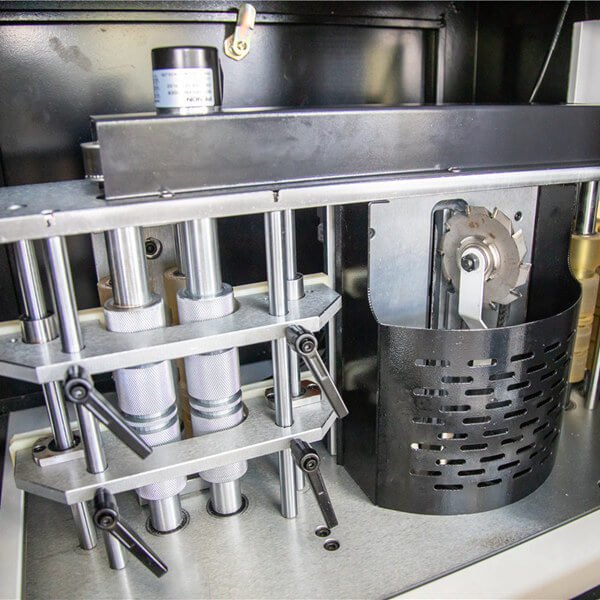

Designed for maximum productivity, the High Precision CNC Channel Letter Bending Machine AEL-A130S features a precision feeding system equipped with an external encoder and high-performance sensors for improved responsiveness and accuracy. Its integrated aluminum die-cast feeding rack provides enhanced stability, while the circulating clamping and feeding system ensures smooth, high-speed processing.
A double-sided swing milling cutter automatically creates notch angles between 45° and 160°, allowing the machine to process a wide range of aluminum profiles and channel letter materials. Software-controlled slotting adjustments provide greater convenience and precision, reducing setup times and improving overall production efficiency.
Key Features:
- Designed for aluminum profiles, channelize coils, and flat aluminum strips
- High-precision servo motor control system
- Dual-axis telescopic bending structure for small arcs and complex shapes
- Automatic double-sided swing milling cutter
- Software-controlled slotting adjustment
- Integrated die-cast feeding rack for improved stability
- Closed-loop feeding feedback system for precise results
- Material reminder and fault alarm functions
- Modular electrical system with high-stability components
Material Capacity:
- Material Width: 20-130mm
- Material Thickness: 0.4-1.5mm
- Flat Aluminum Strips
- Single-Fold Aluminum
- Double-Fold Aluminum
- Aluminum Profiles
- Thin Stainless Steel
Applications:
The High Precision CNC Channel Letter Bending Machine AEL-A130S is widely used in the advertising and sign-making industries for the production of:
- Channel letters
- Profile letters
- Borderless letters
- Illuminated signs
- Logos
- Billboards
- Light boxes
- Architectural signage
- Outdoor advertising displays
Advanced Components
- High-performance Omron sensors and external encoder
- Manual screw fastening clamping system
- Swing milling cutter capable of 360° aluminum processing
- Push-in IO integrated PCB for increased stability
- Electric slotting depth adjustment
- Closed-loop feed feedback system for design accuracy
The High Precision CNC Channel Letter Bending Machine AEL-A130S is the ideal choice for sign manufacturers seeking superior precision, efficient production, and exceptional bending performance for aluminum profiles and channel letter applications. With advanced automation, intelligent controls, and reliable construction, the High Precision CNC Channel Letter Bending Machine AEL-A130S delivers professional-quality results across a wide range of signage projects.
