Description

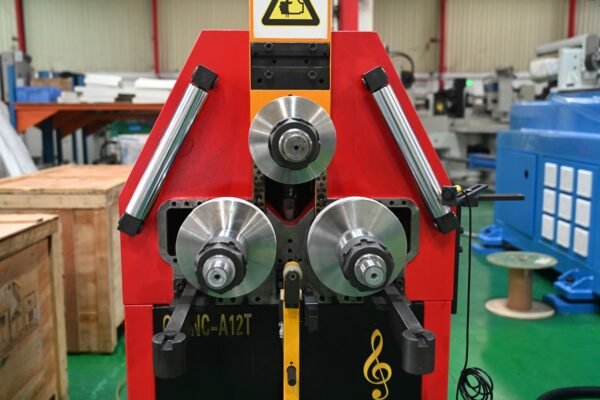

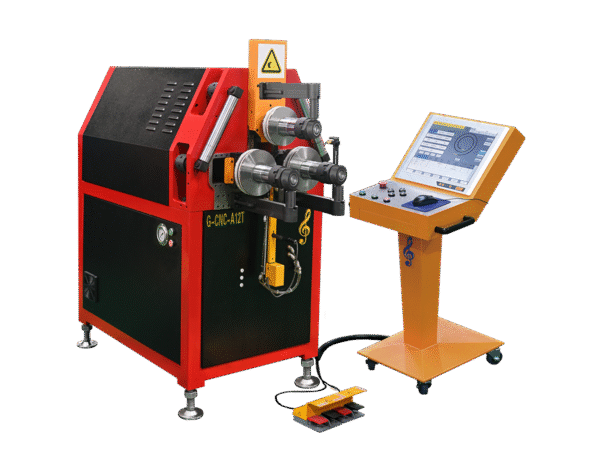

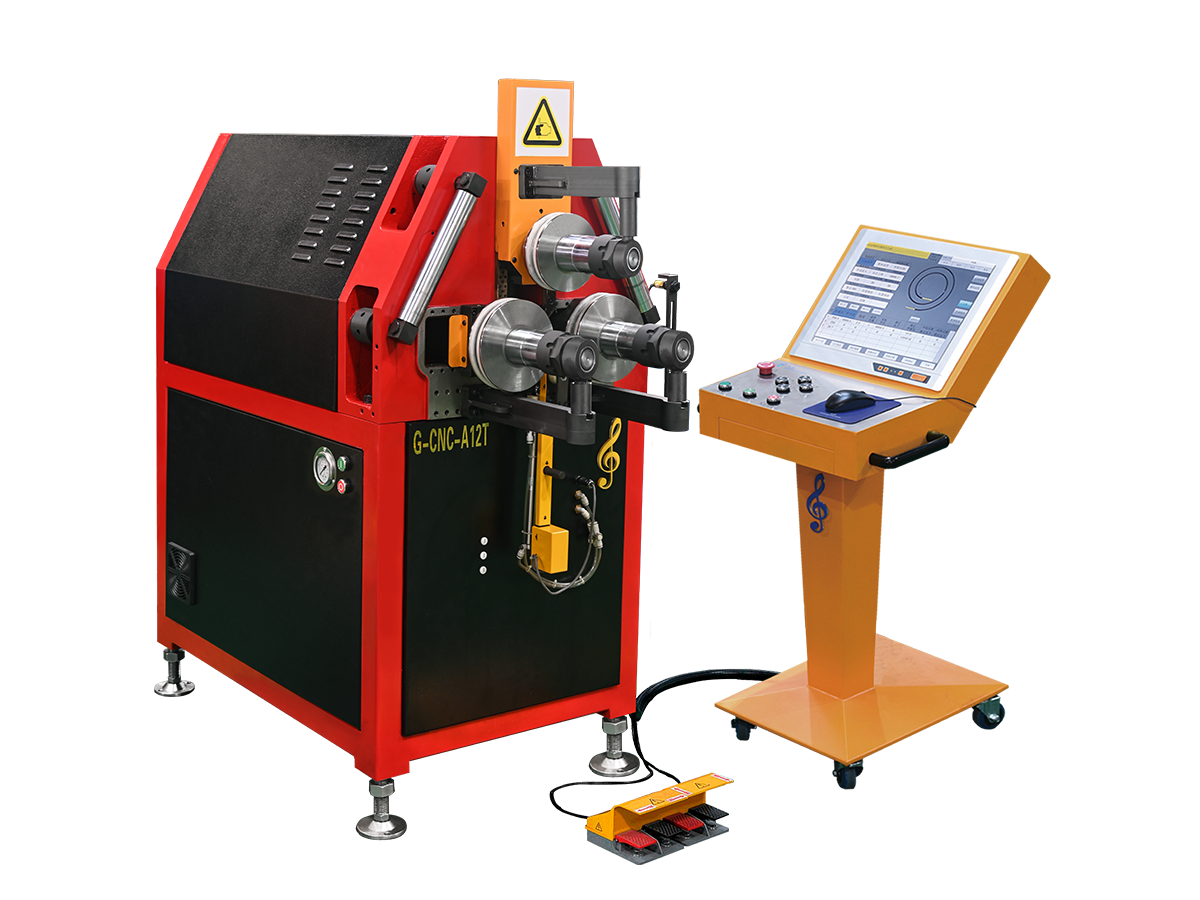

The A12T Roll Bending Machine is a versatile vertical roll bending solution capable of producing multi-radius arcs, ellipses, parabolas, and a wide variety of curvatures with precision and efficiency. Offering both 2D and 3D bending functions, it provides manufacturers with the flexibility to meet diverse project requirements. A fourth roller can also be customized to suit specific production needs, further expanding the machine’s capabilities. With its advanced CNC control system and servo-drive technology, the A12T Roll Bending Machine delivers consistently high-quality results while reducing dependence on operator skill, lowering labor costs, and streamlining production processes.
As one of the company’s mature and proven products, the A12T Roll Bending Machine features shorter sample-making periods and faster lead times, making it ideal for businesses with urgent production demands. Its hydraulic system provides 12T or power, while Y/Z-axis repositioning accuracy of 0.01 mm ensures exceptional precision in every operation. With Y/Z-axis strokes of 165/100 mm, a shaft diameter of 50 mm, and a shaft length of 180 mm, the machine is built to handle challenging bending tasks efficiently.
Technical specifications include a profile maximum cross-section area of 60x60x3 mm and a minimum bending radius equal to 5-8 times the section height. The machine achieves 1700 N.m of torque, offers roller distances adjustable between 180 and 380 mm, and provides individual roller speeds from 1-20 rpm with continuously variable transmission. Driven by an asynchronous motor, it operates on a 3-phase, 380V, 50Hz, 8.8 KVA power supply. Compact and efficient, it weighs 1000 kg and measures 1400x675x1360 mm, making it suitable for a variety of workshop layouts.
By combining flexibility, automation, and reliable engineering, the A12T Roll Bending Machine is an excellent choice for manufacturers seeking fast, precise, and cost-effective bending solutions.
