Description
Boring Machine

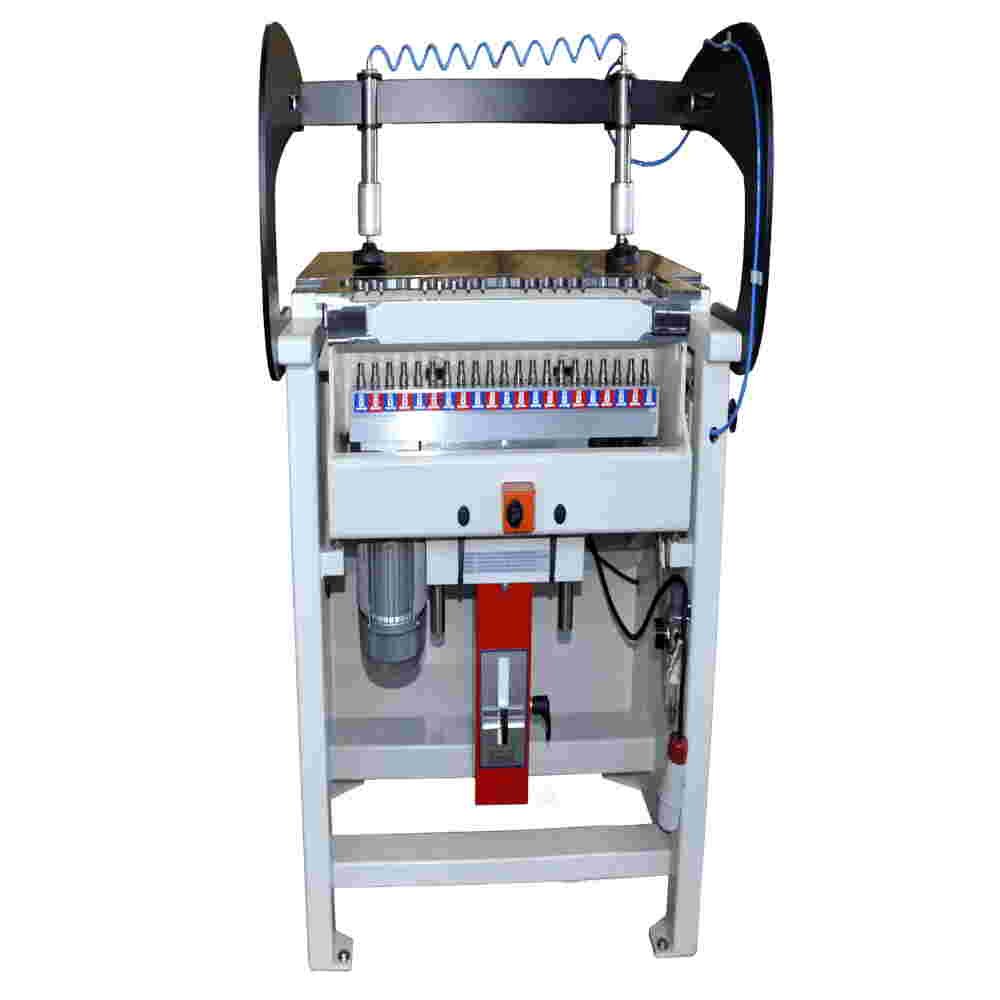

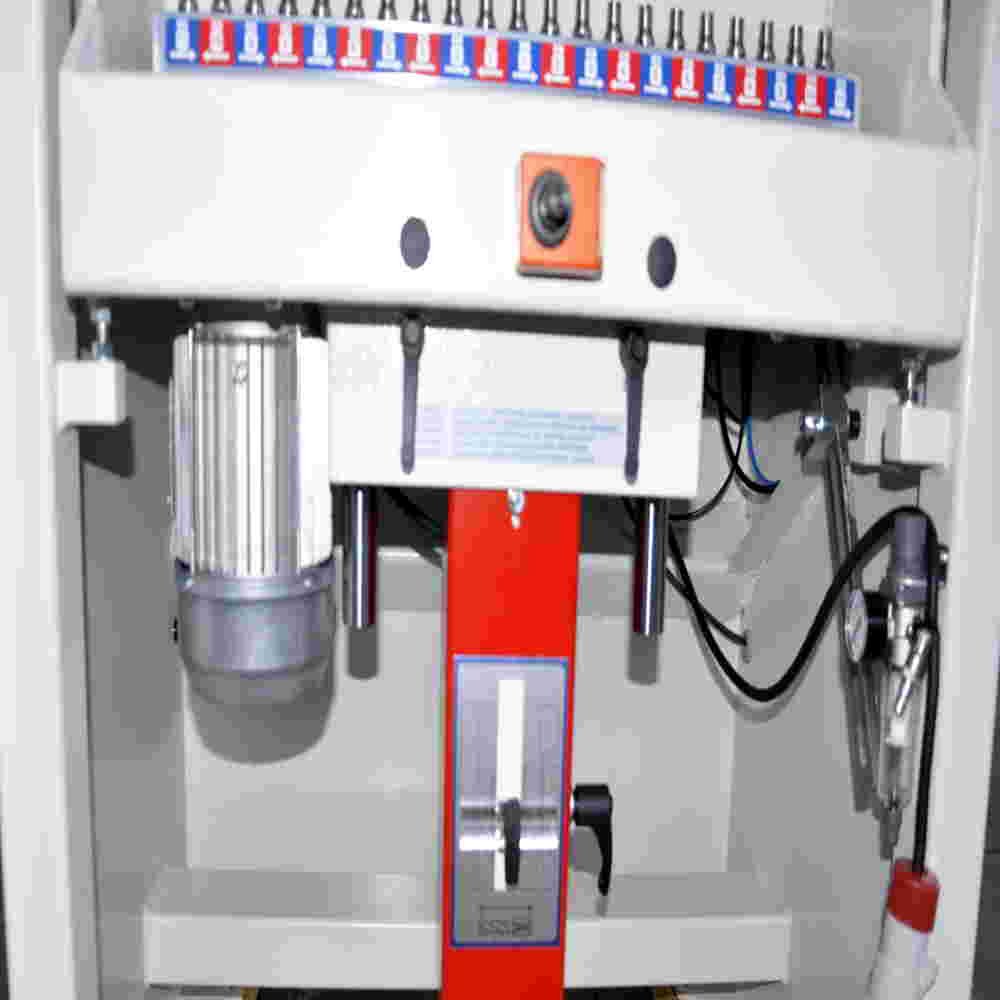

Semi-automatic multiple drilling machine with alluminium fence 3000 mm. with Nr. 2 reference stops.
TECHNICAL DATA
Distance between two adjustment spindles: 32 mm.
21 to 35 head horizontal boring unit , manual control motor system,
Nr.2 hold down safety devices.
easy to use operation panel
Safe working system
Manual support gauge
Adjustable drilling positions
Y axis Drilling
Motor power: 2 Hp
High quality paint and structural body
Working table: 850 mm.
Nr. 2 vertical heads with 21 spindles each, preset to receive the quick coupling – adjustment of drilling depth with 6 positions turret (revolver)
Longitudinal displacement of the boring group is obtained by high precision prismatic guides with electronic digital indicator with magnetic strip.
Options
Extra pneumatic stop
Bit holders
