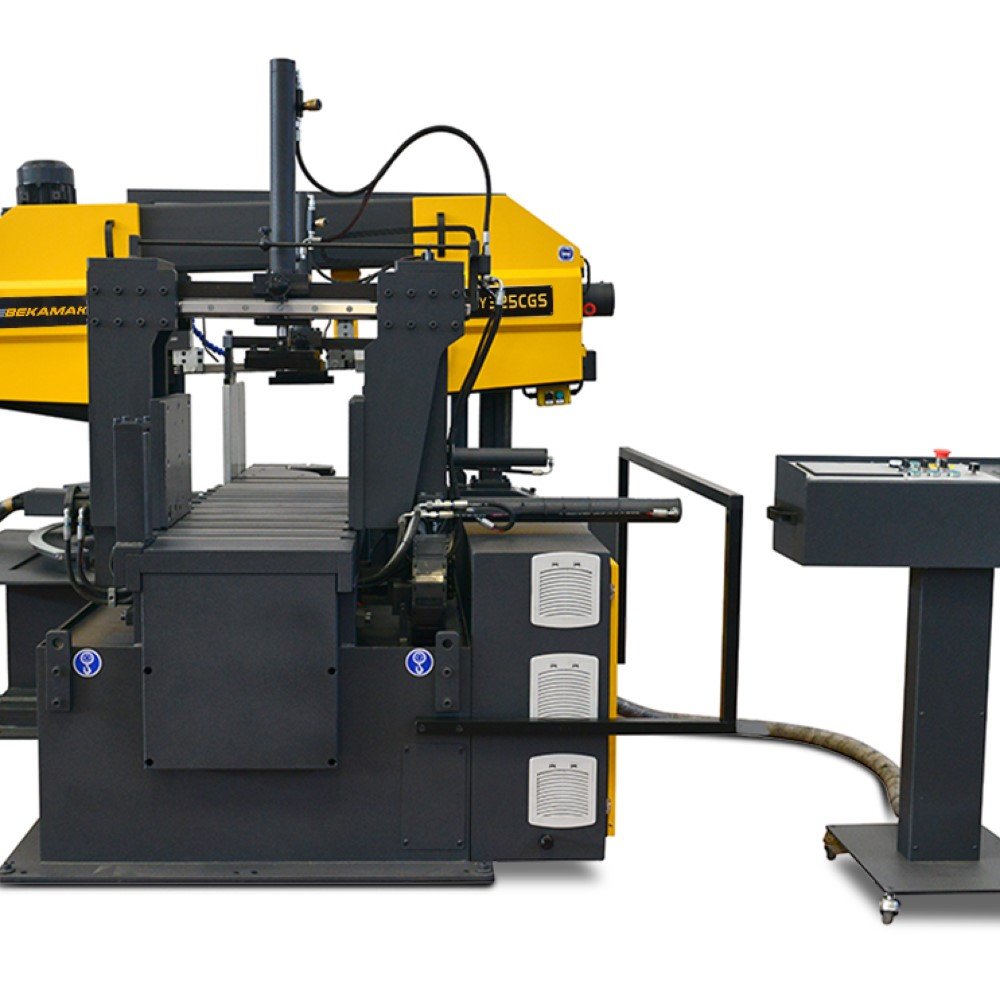

Fully Mitre Twin Pillar, Bekamak BMSO-325CGS NC is PLC controlled horizontal column type one side mitre servo feeding band saws with linear guide ways are ideal for mitre cuts with different quantities. With movement of bow it’s possible to cut between 90° and +30°. You can do 10 different programming (length and quantity) and can be watched on digital panel. Measurement is done by repeating the stroke accouring to 19 11/16″ inch, 500 mm length stroke cutting capacity at 90° is 12 9/16″ inch, 320 mm x 17 11/16″ inches, 450 mm for flat type and 12 3/4″ inches, 320 mm for round shaped materials. With auto height performance adjustment sensors bow approaches the material with perfect and fast speed and hydraulic cutting control allows the bow go up over the material after the cut. All this process is controlled mechanical switch. Fixing the bow at any angle is controlled by hydraulically brake system and you can control it by another digital counter placed on main body of machine. As in all Bekamak products in BMSO 325CGS, safety is most important priority and all mechanical and electrical devices are set for best safety measures.
